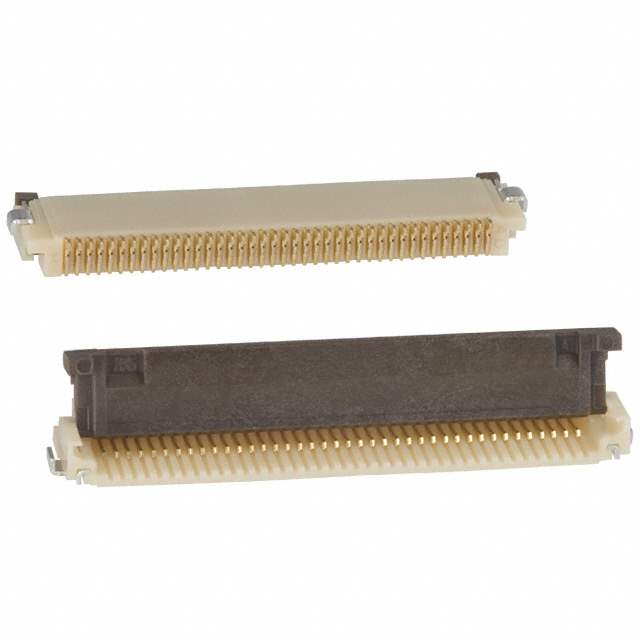

FH12-40S-0.5SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-40S-0.5SH(55)

Part No FH12-40S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 40POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 40
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 001181-FH12-40S-0.5SH(55)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian FH12-40S-0.5SH(55) CAD Model

Description

The Hirose Electric Co Ltd FH12 series is a zero insertion force (ZIF) connector.

  • Positions: 40
  • Pitch: 0.020" (0.50mm)
  • Termination: Solder
  • Contact Finish: Gold
  • Connector/Contact Type: Contacts, Bottom
  • Flat Flex Type: FFC, FPC
  • Housing Material: Polyamide (PA), Nylon
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Mounting: Surface Mount, Right Angle
  • Mating Cycles: 20
  • Operating Temperature: -40°C to 85°C
  • Actuator Color: Brown
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 2k pcs
