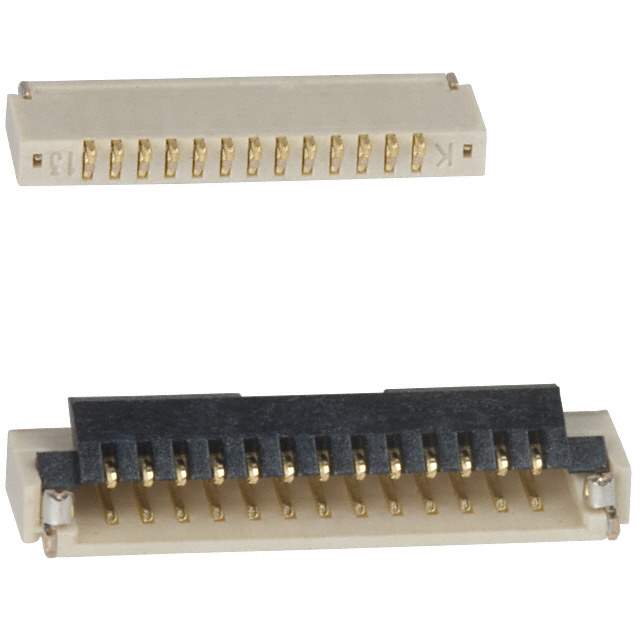

Same model may have multiple batches, images only for reference.

FH19SC-13S-0.5SH(99)

Name: FH19SC-13S-0.5SH(99)
Brand: Hirose Electric Co Ltd
SKU: 1199391
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH19SC-13S-0.5SH(99)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 13POS 0.50MM R/A / 13 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Datasheet	FH19SC-13S-0.5SH(99) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH19SC
Package	Tape & Reel (TR)
Product Status	Last Time Buy
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	13
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.037" (0.95mm)
Locking Feature	Flip Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Beige
Actuator Color	Black
Mating Cycles	20
Base Product Number	FH19
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	580-0518-8-99
Standard Package	500
Win Source Part Number	1199391-FH19SC-13S-0.5SH(99)
Ultra Librarian 3D Model	Ultra Librarian FH19SC-13S-0.5SH(99) CAD Model

Alternative Products

Description

The FH19SC-13S-0.5SH(99) is a flat flexible connector from Hirose Electric Co Ltd.

Positions: 13
Pitch: 0.020 inches (0.50mm)
Features: solder retention and zero insertion force (ZIF)
Mounting: surface mounting
Mounting Type: right angle
Temperature Range: -55°C to 85°C
RoHS: non-compliant
Series: FH19SC
Housing Material: liquid crystal polymer (LCP) and halogen-free
Actuator Color: black
