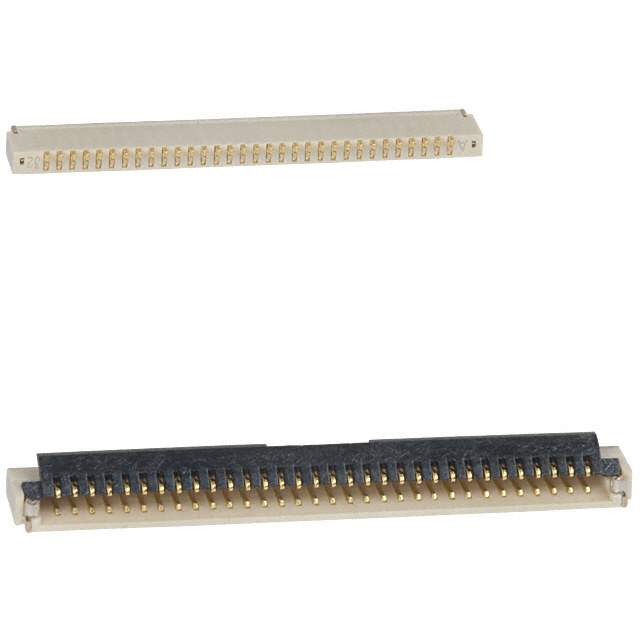

FH19SC-32S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-32S-0.5SH(05)

Part No FH19SC-32S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 32POS 0.50MM R/A
Datasheet
FH19SC-32S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 32
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.037" (0.95mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Win Source Part Number 1094788-FH19SC-32S-0.5SH(05)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian FH19SC-32S-0.5SH(05) CAD Model

Description

The FH19SC-32S-0.5SH(05) is a 32-position FFC/FPC connector from Hirose Electric Co Ltd.

  • Position: 32
  • Type: FFC/FPC Connector
  • Pitch: 0.020" (0.50mm)
  • Mounting: Surface Mount, Right Angle
  • Material: Liquid Crystal Polymer (LCP)
  • Halogen-Free: Yes
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Locking Feature: Flip Lock
  • Cable End Type: Tapered
  • Housing Color: Beige
  • Actuator Color: Black
  • Temperature Range: -55°C to 85°C
  • Mating Cycle: 20
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 5k pcs
