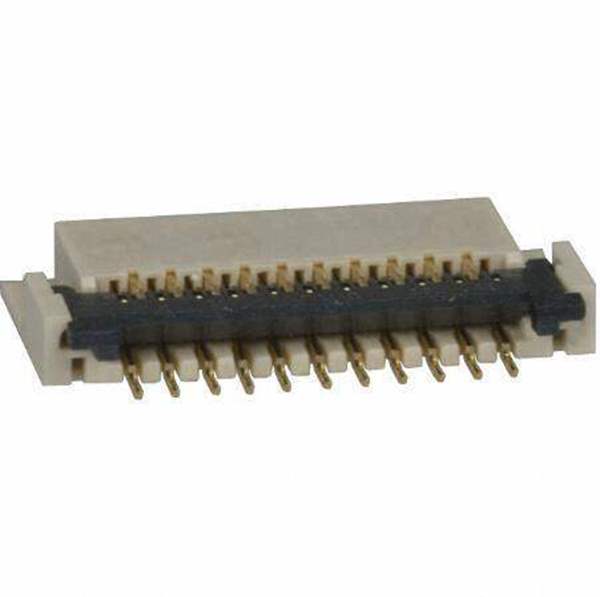

FH23-21S-0.3SHAW(05)

Part No FH23-21S-0.3SHAW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 21POS 0.3MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects FFC, FPC (Flat Flexible) Connectors FFC, FPC (Flat Flexible) Connector Assemblies
Part Status Active
Connector/Contact Type Contacts, Bottom
Pitch 0.012" (0.30mm)
Termination Solder
Height Above Board 0.049" (1.25mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Win Source Part Number WS1305514-FH23-21S-0.3SHAW(05)
Ultra Librarian 3D Model Ultra Librarian FH23-21S-0.3SHAW(05) CAD Model

Description

21 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
