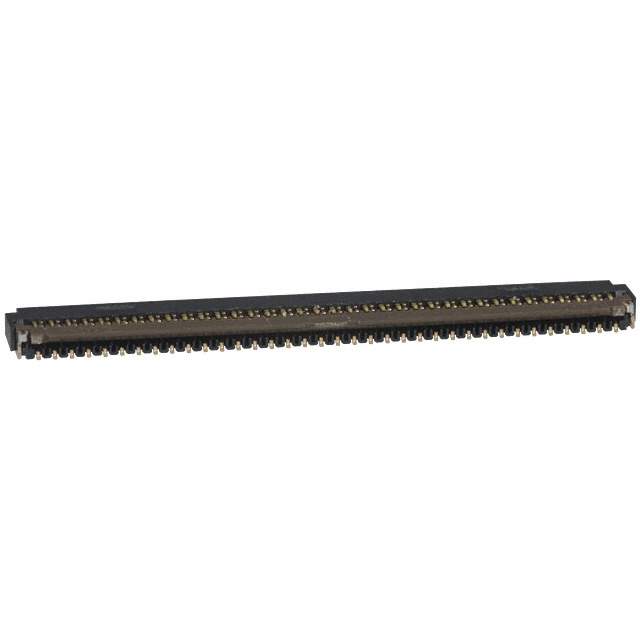

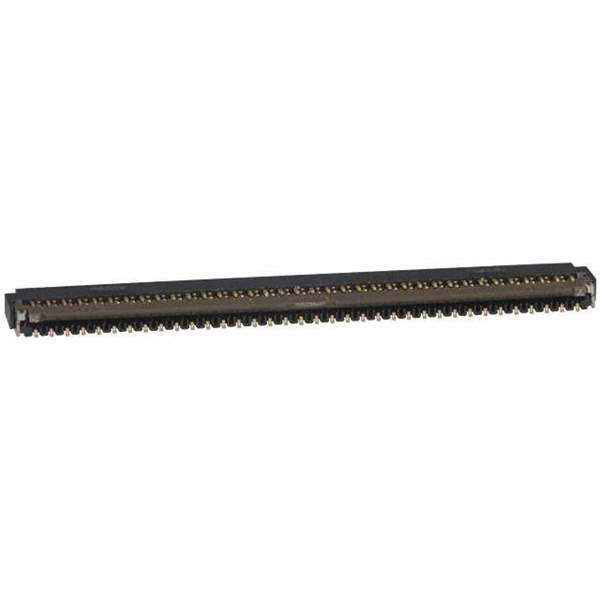

FH26-71S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH26-71S-0.3SHW(05)

Part No FH26-71S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 71POS 0.30MM R/A / Conn FPC Connector SKT 71 POS 0.3mm Solder RA SMD T/R
Datasheet
FH26-71S-0.3SHW(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH26
Packaging Reel package
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 71
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Operating Temperature Range -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
Win Source Part Number 774566-FH26-71S-0.3SHW(05)
Popularity Medium
Supply and Demand Status Limited
Quantity per package 5k pcs
Family Name FH26
Introduction Date August 31, 2004
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian FH26-71S-0.3SHW(05) CAD Model

Description

The FH26-71S-0.3SHW(05) is a connector/contact type electronic component manufactured by Hirose Electric Co Ltd.

  • Series: FH26
  • Package: Reel
  • Positions: 71
  • Pitch: 0.012" (0.30mm)
  • Locking Feature: Zero Insertion Force (ZIF), Flip Lock
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 30V
  • Current Rating: 0.2A
  • Height Above Board: 0.039" (1.00mm)
  • FFC Compatibility: FPC
  • Connector/Contact Type: Contacts, Bottom
  • FFC, FCB Thickness: 0.20mm
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Polyamide (PA), Nylon
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Black
  • Mounting Type: Surface Mount, Right Angle
  • Supply and Demand Status: Limited
