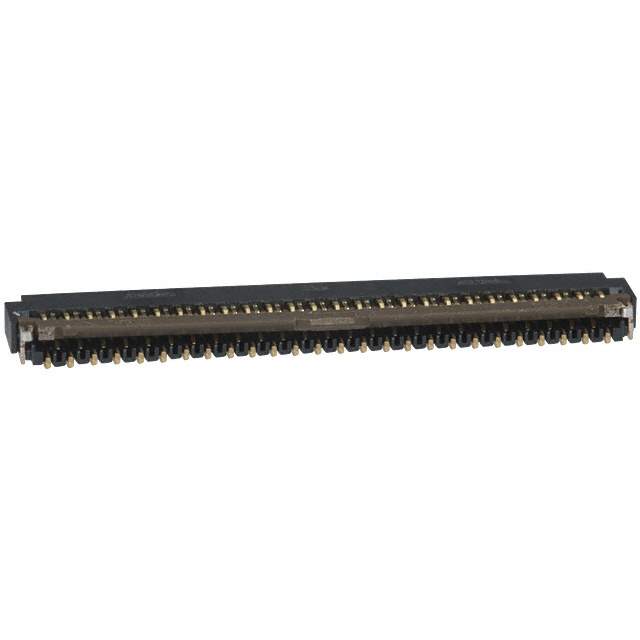

FH26W-51S-0.3SHW(05) Real Image
Same model may have multiple batches, images only for reference.

FH26W-51S-0.3SHW(05)

Part No FH26W-51S-0.3SHW(05)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 51POS 0.30MM R/A / 51 Position FPC Connector Contacts, Bottom 0.012" (0.30mm) Surface Mount, Right Angle
Datasheet
FH26W-51S-0.3SHW(05) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Hirose Electric Co Ltd
Series FH26
Package Tape & Reel (TR)
Product Status Obsolete
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 51
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Polyamide (PA), Nylon
Features Zero Insertion Force (ZIF)
Voltage Rating 30V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 HB
Current Rating (Amps) 0.2A
Housing Color Black
Actuator Color Brown
Mating Cycles 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names 580-2415-6-05
Standard Package 5,000
Win Source Part Number 971757-FH26W-51S-0.3SHW(05)
Ultra Librarian 3D Model Ultra Librarian FH26W-51S-0.3SHW(05) CAD Model

Description

The FH26 series connector is a FPC connector with a flip lock mechanism from Hirose.

  • Pitch: 0.012” (0.30mm)
  • Positions: 51
  • Height above board: 0.039” (1.00mm)
  • Temperature Range: -55°C to 85°C
  • Current Rating: 0.2A
  • Voltage Rating: 30V
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Polyamide (PA), Nylon
  • Housing Color: Black
  • Actuator Color: Brown
  • Mating Cycle: 10
  • Packaging: Tape & reel (TR)
