Same model may have multiple batches, images only for reference.

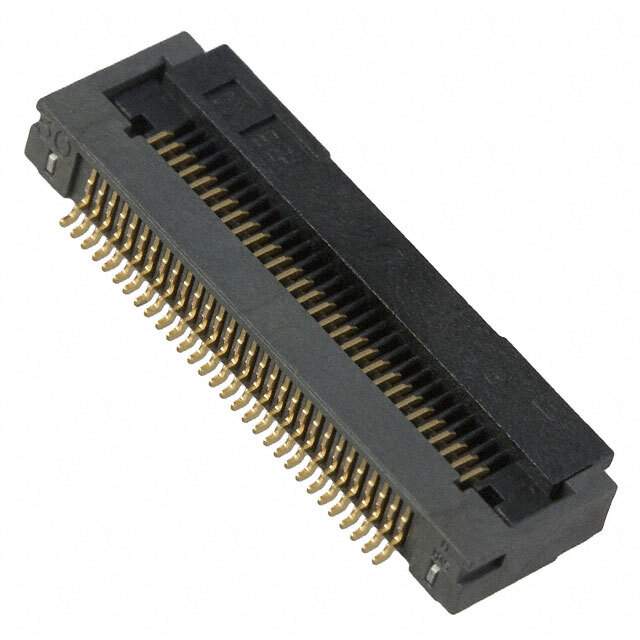

FH28D-30S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH28D-30S-0.5SH(05)

Part No FH28D-30S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 30POS 0.50MM R/A
Datasheet
FH28D-30S-0.5SH(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 30 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH28
Package Reel - TR
Operating Temperature Range -40°C ~ 105°C
Mounting Surface Mount, Right Angle
Family Name FH28
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 586-1827-6-05, FH28D-30S-0.5SH(05)-ND, Q2337901A, Q5373104, HFV230DKR, HFV230TR, *FH28D-30S-0.5SH(05), HFV230CT, FH28D30S05SH05, Q3141838
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871883-FH28D-30S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH28D-30S-0.5SH(05) CAD Model

Description

The Hirose Electric Co Ltd FH28 series connector is a 30 position FFC, FPC connector with bottom 0.020" (0.50mm) surface mount and right angle mounting.

  • Positions: 30
  • Mounting: Bottom 0.020" (0.50mm) Surface Mount and Right Angle
  • Operating Temperature Range: -40°C to 105°C
  • Series: FH28
  • Category: Connectors
  • Package: Reel - TR
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 25 weeks
  • ECCN: EAR99
  • HTSUS: 8536.69.4051
  • Other Part Numbers: 586-1827-6-05, FH28D-30S-0.5SH(05)-ND, Q2337901A, Q5373104, HFV230DKR, HFV230TR, *FH28D-30S-0.5SH(05), HFV230CT, FH28D30S05SH05, and Q3141838
