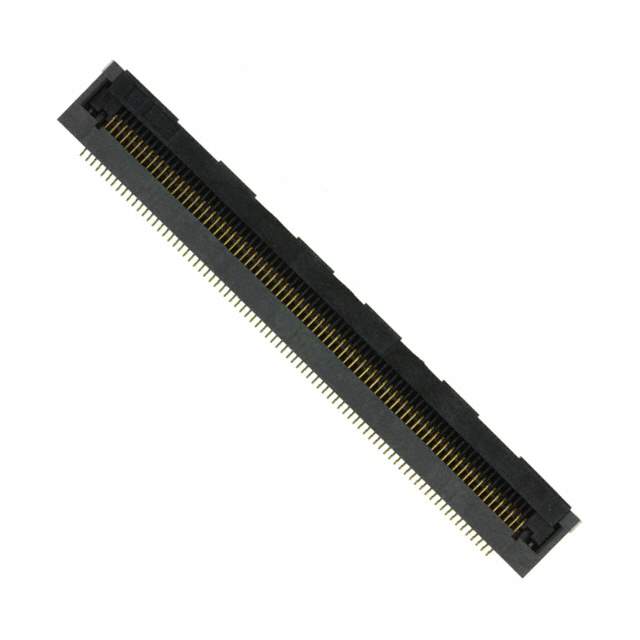

Same model may have multiple batches, images only for reference.

FH28H-80S-0.5SH(98)

Name: FH28H-80S-0.5SH(98)
Brand: Hirose Electric Co Ltd
SKU: 1203261
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FH28H-80S-0.5SH(98)
Manufacturer	Hirose Electric Co Ltd
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 80POS 0.50MM R/A / 80 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Hirose Electric Co Ltd
Series	FH28
Package	Tape & Reel (TR)
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	80
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.100" (2.54mm)
Locking Feature	Rotary Lock
Cable End Type	Tabbed
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Gray
Actuator Color	Black
Mating Cycles	20
Base Product Number	FH28
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	586-1805-3-98
Standard Package	500
Win Source Part Number	1203261-FH28H-80S-0.5SH(98)
Ultra Librarian 3D Model	Ultra Librarian FH28H-80S-0.5SH(98) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd. connector FH28H-80S-0.5SH(98) is a 80-position FFC/FPC connector with a pitch of 0.020 inches.

Positions: 80
Connector Type: FFC/FPC
Pitch: 0.020 inches
Zero Insertion Force (ZIF): Yes
Solder Retention: Yes
Contact Finish: Gold
Voltage Rating: 50V
Height Above Board: 0.100 inches
Thickness: 0.30mm
Housing Color: Gray
Rotary Lock: Yes
