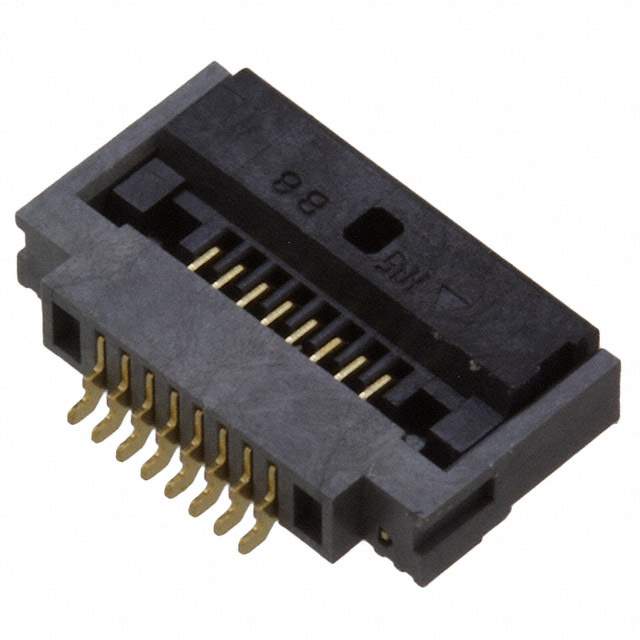

FH52-8S-0.5SH Real Image
Same model may have multiple batches, images only for reference.

FH52-8S-0.5SH

Part No FH52-8S-0.5SH
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 8POS 0.50MM R/A / 0.5mm and 1mm Pitch, 2mm Height, FPC/FFC ZIF Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Reel
Flat Flex Type FFC, FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 8
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Tabbed
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material Liquid Crystal Polymer (LCP), Halogen Free
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 1.18μin (0.030μm)
Housing Color Gray
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807229-FH52-8S-0.5SH
Ultra Librarian 3D Model Ultra Librarian FH52-8S-0.5SH CAD Model

Description

Hirose Electric Co Ltd 807229-FH52-8S-0.5SH is a surface mount, right-angle connector that has a locking feature of flip lock. Hirose Electric Co Ltd

  • Pitch: 0.020" (0.50mm)
  • Positions: 8
  • Popularity: Medium
  • Supply and Demand Status: Balanced
