Same model may have multiple batches, images only for reference.

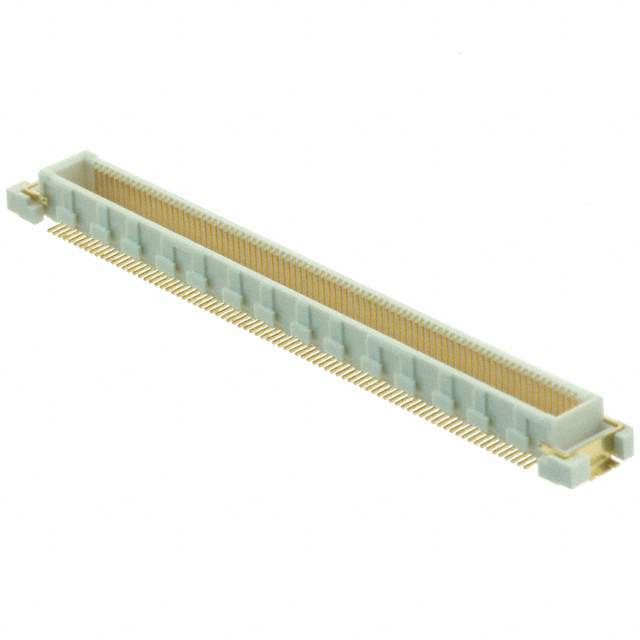

FX10A-168P-SV(71) Real Image
Same model may have multiple batches, images only for reference.

FX10A-168P-SV(71)

Part No FX10A-168P-SV(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 168POS SMD GOLD / 168 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX10A-168P-SV(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 168
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 4mm
Height Above Board 0.138" (3.50mm)
Base Product Number FX10
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number FX10A168PSV71,FX10A-168P-SV(71)-ND,-FX10A-168P-SV(71),570-0044-8-71,H122323
Standard Package 50
Win Source Part Number 1332437-FX10A-168P-SV(71)
Ultra Librarian 3D Model Ultra Librarian FX10A-168P-SV(71) CAD Model

Description

The Hirose Electric Co Ltd FX10 series connector is a header, outer shroud contacts connector designed for surface mount applications.

  • Manufacturer: Hirose Electric Co Ltd
  • Series: FX10
  • Connector Type: Header, Outer Shroud Contacts
  • Mounting Type: Surface Mount
  • Positions: 168
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Pitch: 0.020 inches (0.50mm)
  • Features: Board Guide and Solder Retention
  • Height Above Board: 0.138 inches (3.50mm)
  • Packaging: Tray
  • RoHS3 Compliant: Yes
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
