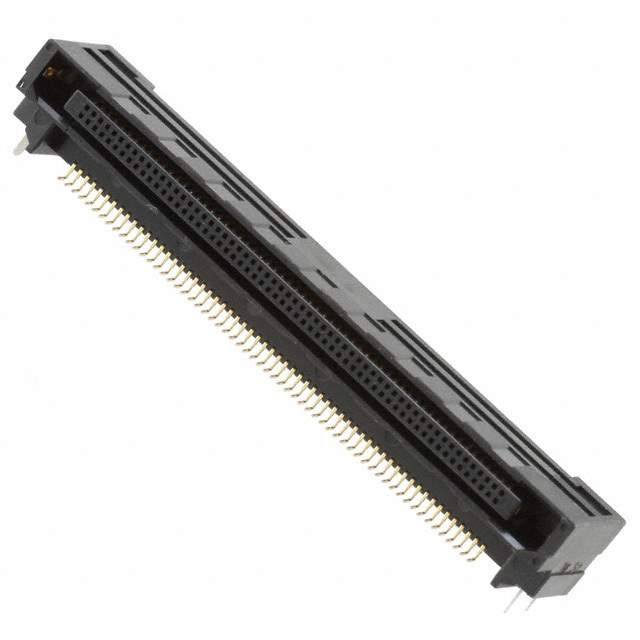

FX18-120S-0.8SH Real Image
Same model may have multiple batches, images only for reference.

FX18-120S-0.8SH

Part No FX18-120S-0.8SH
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 120POS R/A SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount, Right Angle Gold
Datasheet
FX18-120S-0.8SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Receptacle, Center Strip Contacts
Number of Positions 120
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Surface Mount, Right Angle
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Height Above Board 0.374" (9.50mm)
Base Product Number FX18
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number FX18120S08SH,579-0013-1-00,H11867
Standard Package 40
Win Source Part Number 1332364-FX18-120S-0.8SH
Ultra Librarian 3D Model Ultra Librarian FX18-120S-0.8SH CAD Model

Description

The FX18 120S 0.8SH Rectangular Connector is a high-quality connector that features a receptacle with center strip contacts and a surface mount, right-angle mounting type.

  • Pitch: 0.031" (0.80mm)
  • Positions: 120
  • Feature: Board Guide
  • Contact Finish: Gold (4.00µin or 0.100µm)
  • Height Above Board: 0.374" (9.50mm)
  • Applications: Arrays, Edge Type, Mezzanine (Board to Board)
  • Packaging: Tray
