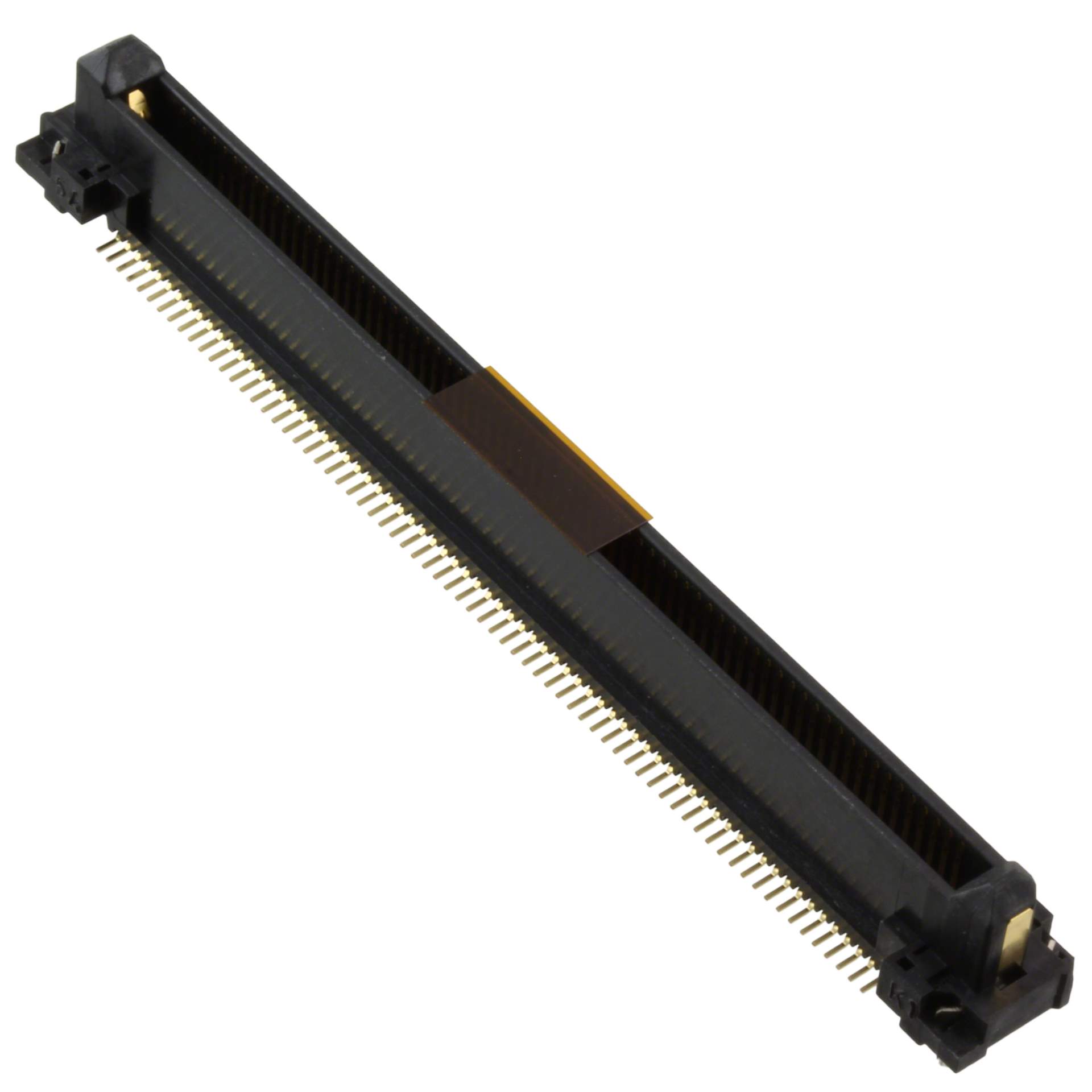

FX18-140P-0.8SV Real Image
Same model may have multiple batches, images only for reference.

FX18-140P-0.8SV

Part No FX18-140P-0.8SV
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 140POS SMD GOLD / 140 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX18
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 140
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 20mm
Height Above Board 0.341" (8.65mm)
Base Product Number FX18
Standard Package 40
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340421-FX18-140P-0.8SV
Ultra Librarian 3D Model Ultra Librarian FX18-140P-0.8SV CAD Model

Description

The Hirose Electric Co Ltd FunctionMax™ FX18 series header connector is an edge type, mezzanine (board-to-board) connector with a 140-position configuration.

  • Pitch: 0.031-inch (0.80mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Mounting Type: Surface Mount
  • Board Guide: Yes
  • Connector Type: Shrouded Outer Shroud Contacts Header
  • Rows: Two
  • Packaging: Tray
  • Mated Stacking Heights: 15mm and 20mm
  • Height Above Board: 0.341 inches (8.65mm)
  • Standard Package: 40
