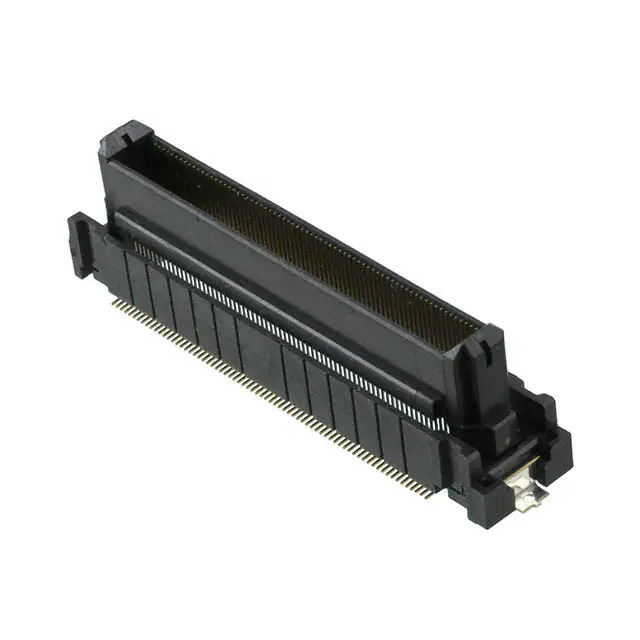

FX20-140P-0.5SV15 Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX20-140P-0.5SV15

Part No FX20-140P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 140POS SMD GOLD / 140 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX20-140P-0.5SV15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX20
Package Tray
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 140
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 25mm
Height Above Board 0.520" (13.20mm)
Base Product Number FX20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364522-FX20-140P-0.5SV15
Ultra Librarian 3D Model Ultra Librarian FX20-140P-0.5SV15 CAD Model

Description

The Hirose Electric Co Ltd FunctionMax™ FX20 is a rectangular connector array designed for board-to-board interconnects. Hirose Electric Co Ltd's FunctionMax™ FX20...

  • Connector Type: Header
  • Contact Type: Outer Shroud
  • Positions: 140
  • Number of Rows: 2
  • Pitch: 0.020" (0.50mm)
  • Height Above Board: 0.520" (13.20mm)
  • Mounting Type: Surface Mount
  • Package: Tray
  • Solder Retention: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Product Status: Active
