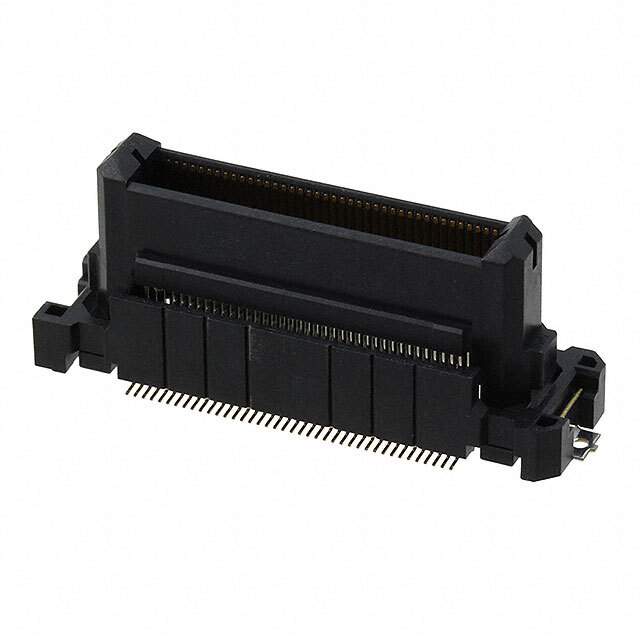

FX20-80P-0.5SV15 Real Image
Same model may have multiple batches, images only for reference.

FX20-80P-0.5SV15

Part No FX20-80P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 80POS SMD GOLD / 80 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX20-80P-0.5SV15 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 25mm
Height Above Board 0.520" (13.20mm)
Base Product Number FX20
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H122385,*FX20-80P-0.5SV15,-FX20-80P-0.5SV15,570-1003-6-00
Standard Package 60
Win Source Part Number 1333073-FX20-80P-0.5SV15
Ultra Librarian 3D Model Ultra Librarian FX20-80P-0.5SV15 CAD Model

Description

The Hirose Electric Co Ltd FX20-80P-0.5SV15 is a rectangular connector array from Hirose Electric Co Ltd.

  • Positions: 80
  • Pitch: 0.020" (0.50mm)
  • Solder Retention: Yes
  • Application: Board-to-Board
  • Package: 8-SMD, Gull-Wing
  • Mated Stacking Heights: 15mm and 25mm
  • RoHS Compliant: Yes
