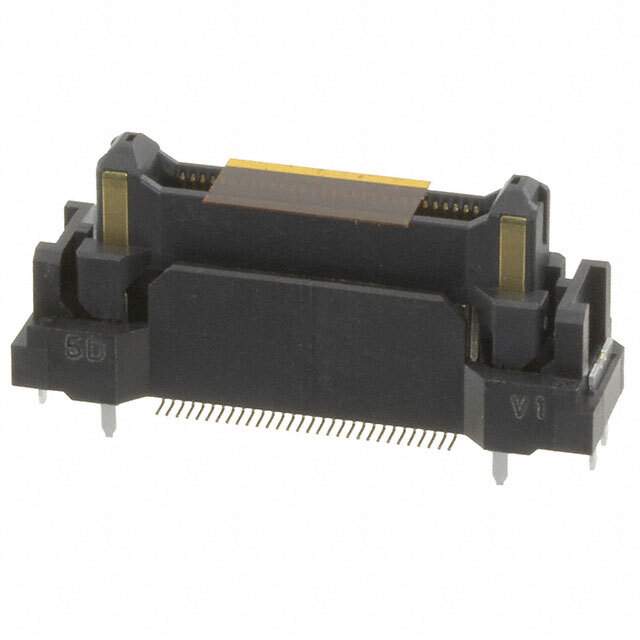

FX23-60P-0.5SV15 Real Image
Same model may have multiple batches, images only for reference.

FX23-60P-0.5SV15

Part No FX23-60P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX23
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 64 (60 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 20mm
Height Above Board 0.507" (12.88mm)
Base Product Number FX23
Other Names H125044,573-3003-6-00
Standard Package 84
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293997-FX23-60P-0.5SV15
Ultra Librarian 3D Model Ultra Librarian FX23-60P-0.5SV15 CAD Model

Description

The FunctionMax™ FX23 is a rectangular connector array with 64 positions, including 4 power contacts.

  • Positions: 64
  • Number of Positions: Including 4 Power Contacts
  • Series: FunctionMax™ FX23
  • Pitch: 0.020 inches (0.50mm)
  • Contact Type: Outer Shroud Contact Header
  • Contact Finish: Gold
  • Contact Finish Thickness: 4.00µin (0.100µm)
  • Features: Board Guide
  • Mounting Type: Surface Mount Technology
  • Height Above Board: 0.507 inches (12.88mm)
  • Mated Stacking Heights: 15mm and 20mm
  • Manufacturer: Hirose Electric Co Ltd
