Same model may have multiple batches, images only for reference.

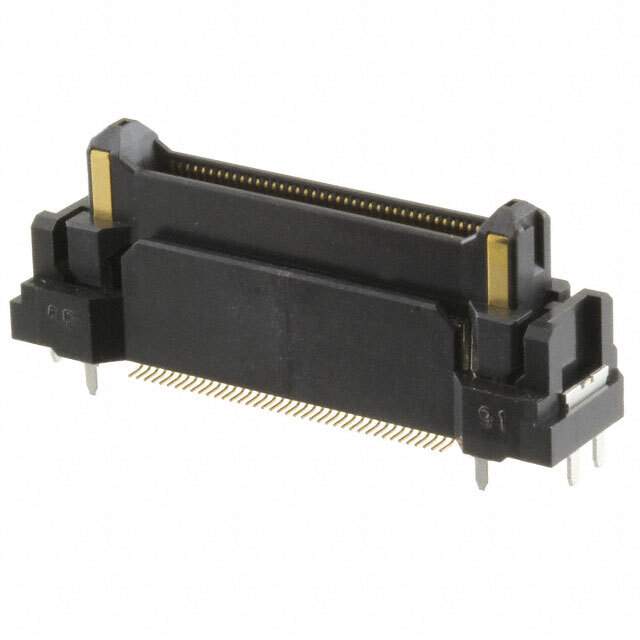

FX23-80P-0.5SV15 Real Image
Same model may have multiple batches, images only for reference.

FX23-80P-0.5SV15

Part No FX23-80P-0.5SV15
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 80POS SMD GOLD / 84 (80 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series FunctionMax™ FX23
Package Tray
Connector Type Header, Outer Shroud Contacts
Number of Positions 84 (80 + 4 Power)
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 4.00µin (0.100µm)
Mated Stacking Heights 15mm, 20mm
Height Above Board 0.507" (12.88mm)
Base Product Number FX23
Standard Package 72
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338754-FX23-80P-0.5SV15
Ultra Librarian 3D Model Ultra Librarian FX23-80P-0.5SV15 CAD Model

Description

The FunctionMax™ FX23 series of connectors from Hirose Electric Co Ltd are designed for board-to-board mezzanine applications. These rectangular connectors feature an edge-type design with a pitch of 0.020 inches (0.50mm) and 84 positions, including 80 signal contacts and four power contacts.

  • Application: Board-to-Board Mezzanine
  • Shape: Rectangular
  • Type: Edge
  • Pitch: 0.020 inches (0.50mm)
  • Positions: 84 (80 Signal, 4 Power)
  • Connector Type: Header
  • Contacts: Outer Shroud
  • Rows: 2
  • Contact Finish: Gold, 4.00μin (0.100μm)
  • Package: Tray
  • Mated Stacking Heights: 15mm, 20mm
  • Height Above Board: 0.507 inches (12.88mm)
  • Features: Board Guides
  • Mounting: Surface Mountable
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
