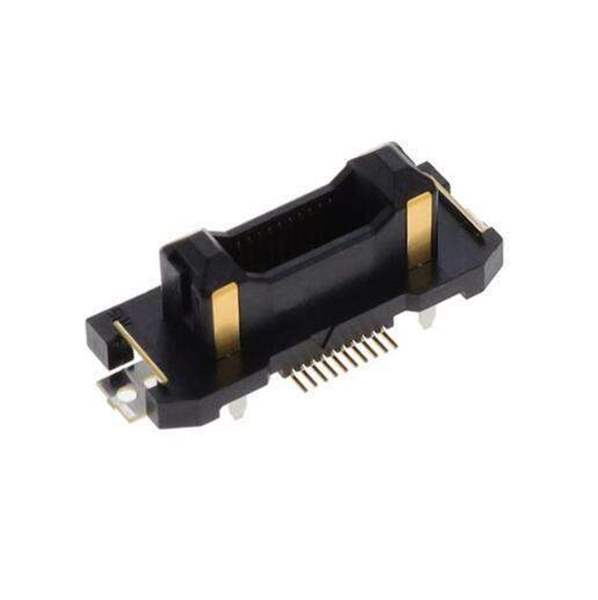

FX23L-20P-0.5SV8Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX23L-20P-0.5SV8

Part No FX23L-20P-0.5SV8
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular - Board to Board Connectors
Description CONN HDR
Datasheet
FX23L-20P-0.5SV8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Packaging Bulk
Part Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 24 (20 + 4 Power)
Pitch 0.020" (0.50mm)
Mounting Type Surface Mount
Features Board Guide
Contact Finish Thickness 4.00µin (0.100µm)
Win Source Part Number WS1305477-FX23L-20P-0.5SV8
Ultra Librarian 3D Model Ultra Librarian FX23L-20P-0.5SV8 CAD Model

Description

24 (20 + 4 Power) Position Connector Header, Outer Shroud Contacts Surface Mount Gold
