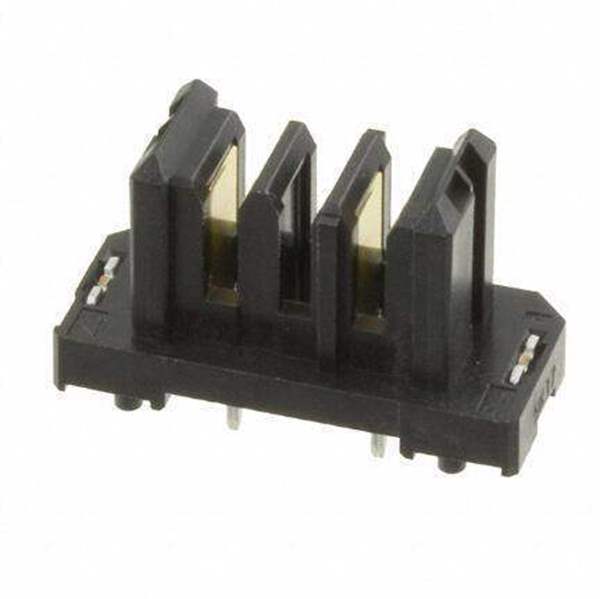

FX30B-2P-7.62DSA20Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX30B-2P-7.62DSA20

Part No FX30B-2P-7.62DSA20
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 7.62MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Hirose Electric Co Ltd
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Part Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.300" (7.62mm)
Number of Positions 2
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.559" (14.20mm)
Contact Shape Rectangular
Win Source Part Number WS1305496-FX30B-2P-7.62DSA20
Ultra Librarian 3D Model Ultra Librarian FX30B-2P-7.62DSA20 CAD Model

Description

Connector Header Through Hole 2 position 0.300" (7.62mm)
