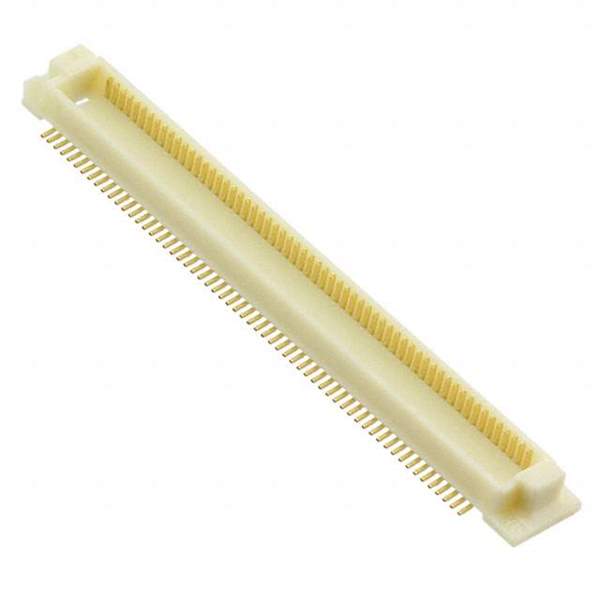

FX8-120P-SV(92) Real Image

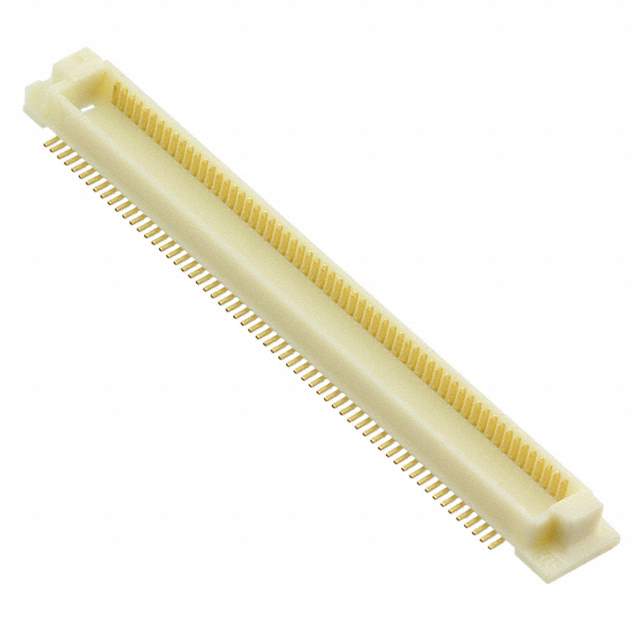

Same model may have multiple batches, images only for reference.

FX8-120P-SV(92)

Part No FX8-120P-SV(92)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 120POS SMD GOLD / 120 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
FX8-120P-SV(92) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Connector Type Header, Outer Shroud Contacts
Number of Positions 120
Pitch 0.024" (0.60mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3mm
Height Above Board 0.112" (2.85mm)
Base Product Number FX8
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 578-0006-0-92
Standard Package 1,000
Win Source Part Number 1332849-FX8-120P-SV(92)
Ultra Librarian 3D Model Ultra Librarian FX8-120P-SV(92) CAD Model

Description

This connector is manufactured by Hirose Electric Co Ltd and has a Win Source Part Number of 1332849-FX8-120P-SV(92).

  • Category: Connectors, Interconnects
  • Connector Family: Rectangular Connectors
  • Type: Array, Edge Type, Mezzanine (Board to Board)
  • Packaging: Reel - TR
  • Positions: 120
  • Pitch: 0.024" (0.60mm)
  • Connector Type: Outer Shroud Contacts Header
  • Contact Finish: Gold
  • Mated Stacking Heights: 3mm
  • Height Above Board: 0.112" (2.85mm)
  • Standard Package: 1,000
  • Mounting Type: Surface Mount
