Same model may have multiple batches, images only for reference.

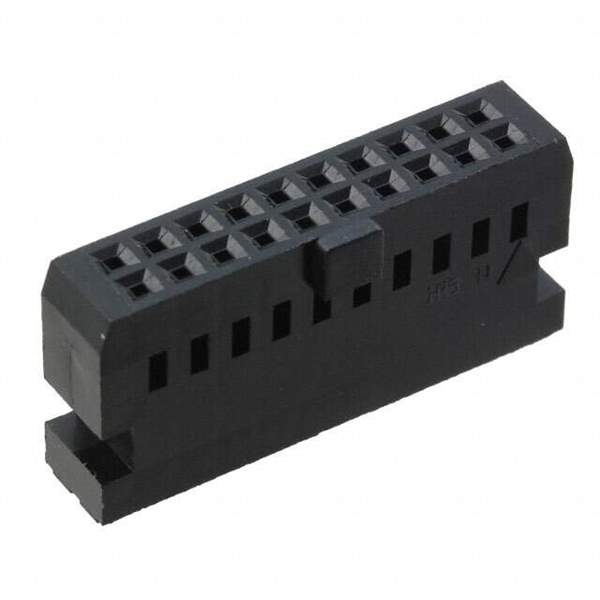

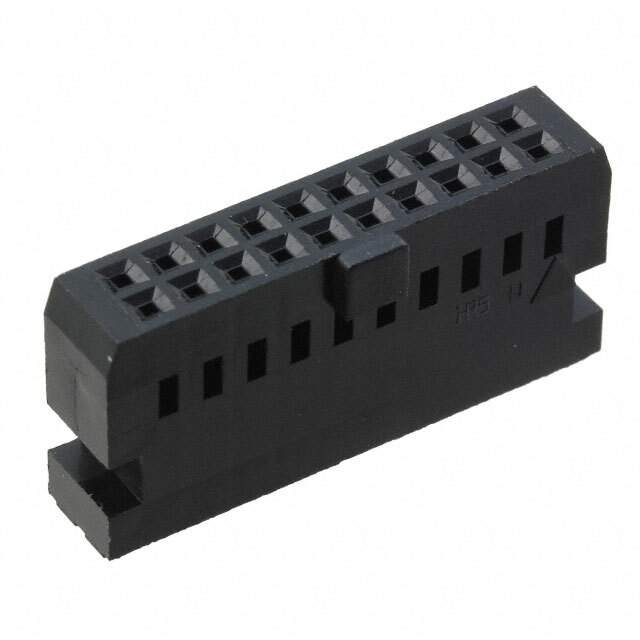

HIF3BA-20D-2.54C

Name: HIF3BA-20D-2.54C
Brand: Hirose Electric Co Ltd
SKU: 1382229
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HIF3BA-20D-2.54C
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT HSG 20POS 2.54MM / 20 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
Datasheet	HIF3BA-20D-2.54C Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Mfr	Hirose Electric Co Ltd
Series	HIF3B
Package	Bulk
Product Status	Obsolete
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	20
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Fastening Type	-
Color	Black
Features	Polarizing Key
Insulation Material	Polybutylene Terephthalate (PBT)
Temperature Range - Operating	-55°C ~ 85°C
Note	Contacts Not Included
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Standard Package	50 pcs
Win Source Part Number	1382229-HIF3BA-20D-2.54C
Ultra Librarian 3D Model	Ultra Librarian HIF3BA-20D-2.54C CAD Model

Alternative Products

Description

The HIF3BA-20D-2.54C is a rectangular connector housing in the HIF3B series from Hirose Electric Co Ltd.

Positions: 20
Pitch: 0.100" (2.54mm)
Connector Type: Receptacle
Contact Gender: Female Socket
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Termination Method: Crimp
Insulation Material: Polybutylene Terephthalate (PBT)
