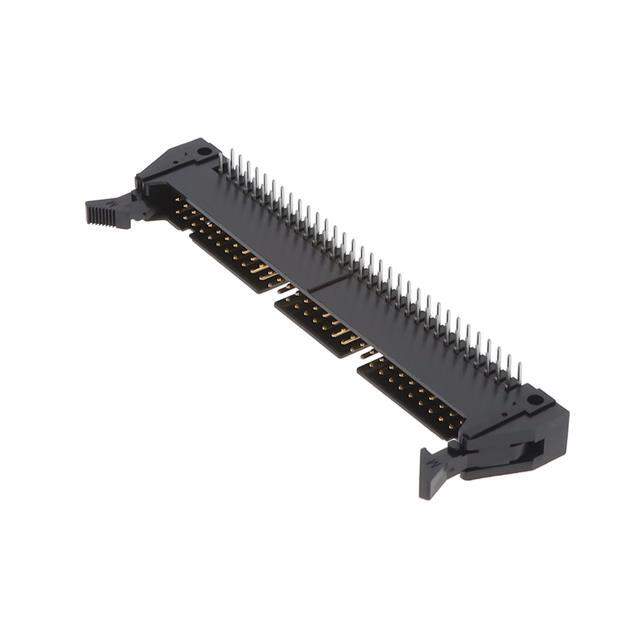

HIF3BA-64PA-2.54DS(63) Real Image
Same model may have multiple batches, images only for reference.

HIF3BA-64PA-2.54DS(63)

Part No HIF3BA-64PA-2.54DS(63)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER R/A 64POS 2.54MM  /  Connector Header Through Hole, Right Angle 64 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3B
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 64
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Lock/Eject Hooks
Contact Length - Post 0.118" (3.00mm)
Insulation Height 0.335" (8.51mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot, Mounting Flange
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 200V
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number HIF3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 26-HIF3BA-64PA-2.54DS(63),610-0101-4-63
Standard Package 60
Win Source Part Number 1210774-HIF3BA-64PA-2.54DS(63)
Ultra Librarian 3D Model Ultra Librarian HIF3BA-64PA-2.54DS(63) CAD Model

Description

Hirose Electric Co Ltd's HIF3BA-64PA-2.54DS(63) is a 64-position board-to-cable/wire header connector with a pitch of 0.100" (2.54mm).

  • Positions: 64
  • Pitch: 0.100" (2.54mm)
  • Mounting Flange: Yes
  • Latch: Latch Lock/Eject Hooks
  • Voltage Rating: 200V
