Same model may have multiple batches, images only for reference.

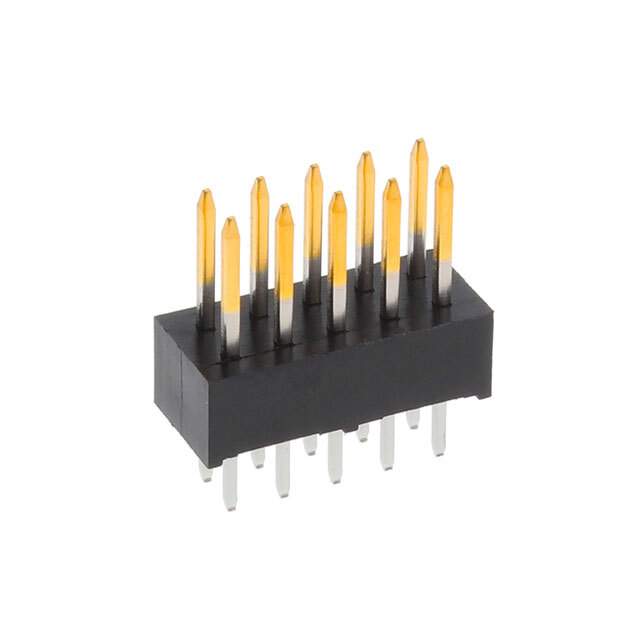

HIF3H-10PB-2.54DSA(61) Real Image
Same model may have multiple batches, images only for reference.

HIF3H-10PB-2.54DSA(61)

Part No HIF3H-10PB-2.54DSA(61)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 2.54MM  /  Connector Header Through Hole 10 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series HIF3H
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.591" (15.00mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300VAC
Contact Finish Thickness - Post 78.7µin (2.00µm)
Base Product Number HIF3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 26-HIF3H-10PB-2.54DSA(61),618-0201-0-61
Standard Package 275
Win Source Part Number 1179174-HIF3H-10PB-2.54DSA(61)
Ultra Librarian 3D Model Ultra Librarian HIF3H-10PB-2.54DSA(61) CAD Model

Description

The HIF3H-10PB-2.54DSA(61) electronic component is a connector manufactured by Hirose Electric Co Ltd.

  • MSL Level: 1 (Unlimited)
  • Win Source Part Number: 1179174
  • Number of Positions: 10
  • Style: Board to Cable/Wire
  • Pitch - Mating: 0.100" (2.54mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 8.00µin (0.203µm)
  • Contact Finish - Post: Tin
  • Contact Finish Thickness - Post: 78.7µin (2.00µm)
  • Operating Temperature: -55°C ~ 85°C
