Same model may have multiple batches, images only for reference.

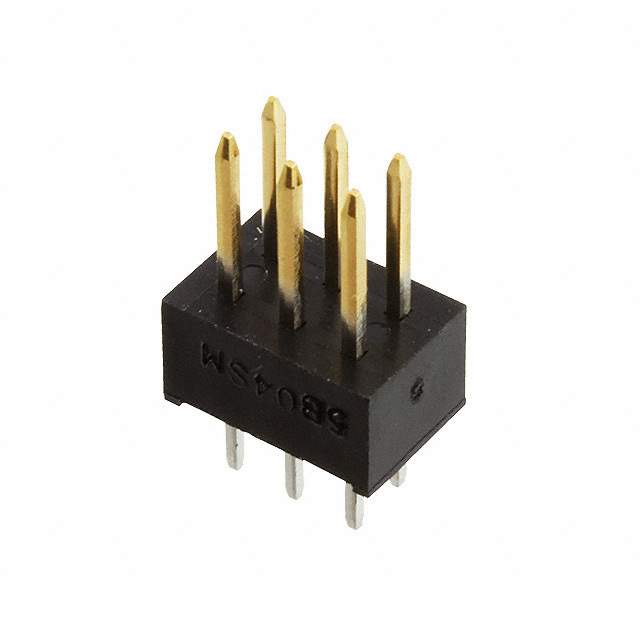

HIF3H-6PB-2.54DSA(71) Real Image
Same model may have multiple batches, images only for reference.

HIF3H-6PB-2.54DSA(71)

Part No HIF3H-6PB-2.54DSA(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Hirose Electric Co Ltd
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 6
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Unshrouded
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.276" (7.00mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.591" (15.00mm)
Insulation Height 0.177" (4.50mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00μin (0.203μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Voltage Rating 300V
Contact Finish Thickness - Post 78.7μin (2.00μm)
Manufacturer Pack Quantity 450
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812589-HIF3H-6PB-2.54DSA(71)
Ultra Librarian 3D Model Ultra Librarian HIF3H-6PB-2.54DSA(71) CAD Model

Description

{"ProductId":750914,"FormattedDescription":"

The Hirose Electric Co Ltd 812589-HIF3H-6PB-2.54DSA(71) is a male pin header connector that has a through-hole mounting style and is loaded with 6 positions.

  • Positions: 6
  • Mounting Style: Through Hole
  • Shrouding: Shrouded
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
"}
