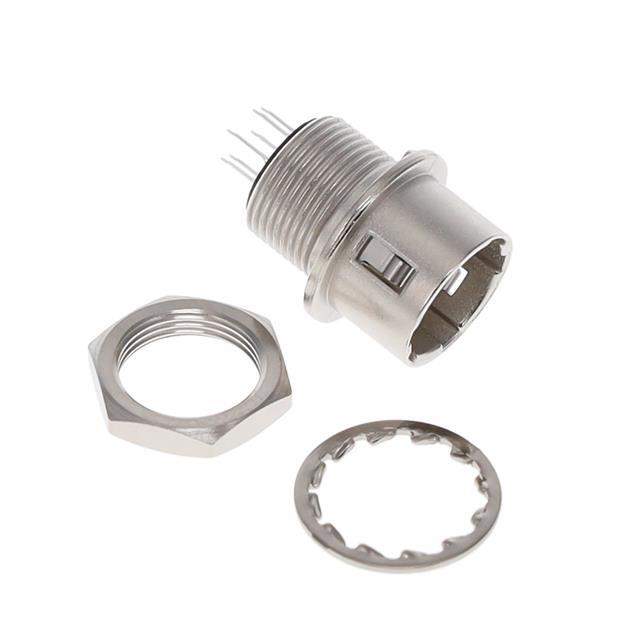

HR10A-7R-6PB(73) Real Image
Same model may have multiple batches, images only for reference.

HR10A-7R-6PB(73)

Part No HR10A-7R-6PB(73)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Description CONN RCPT MALE 6POS SILVER SLDR / 6 Position Circular Connector Receptacle, Male Pins Solder
Datasheet
HR10A-7R-6PB(73) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series HR10A
Package Tray
Connector Type Receptacle, Male Pins
Number of Positions 6
Shell Size - Insert 7
Mounting Type Panel Mount, Through Hole
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder
Fastening Type Push-Pull
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Silver
Color Silver
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 2A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -25°C ~ 85°C
Contact Material Phosphor Bronze
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Insert Material Polybutylene Terephthalate (PBT)
Base Product Number HR10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Names 110-0317-2-73,HR1610,*HR10A-7R-6PB(73),HR10A7R6PB73
Standard Package 60
Win Source Part Number 1128346-HR10A-7R-6PB(73)
Ultra Librarian 3D Model Ultra Librarian HR10A-7R-6PB(73) CAD Model

Description

The HR10A-7R-6PB(73) from Hirose Electric Co Ltd is a circular connector with 6 positions and a silver color.

  • Positions: 6
  • Color: Silver
  • Connector Type: Receptacle Male Pins
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Voltage Rating: 100VAC, 140VDC
  • Flammability Rating: UL94 V-0
  • Temperature Range: -25°C to 85°C
  • Shell Size Insert: 7
  • Mounting: Panel Mount and Through Hole
