Same model may have multiple batches, images only for reference.

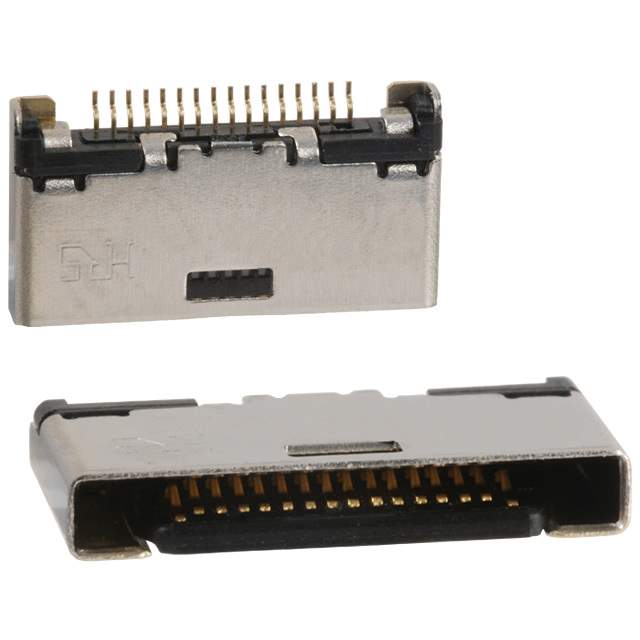

LX60-16S Real Image
Same model may have multiple batches, images only for reference.

LX60-16S

Part No LX60-16S
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 16P 0.02 GOLD SMD R/A
Datasheet
LX60-16S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features 16 Position Receptacle Connector 0.020" (0.50mm) Surface Mount, Right Angle Gold
Manufacturer Hirose Electric Co Ltd
Series LX
Package Reel - TR
Operating Temperature Range -40°C ~ 70°C
Mounting Surface Mount, Right Angle
Family Name LX60
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number *LX60-16S, H11403CT, 245-0001-0-00, H11403TR, LX6016S, H11403DKR
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924672-LX60-16S
Ultra Librarian 3D Model Ultra Librarian LX60-16S CAD Model

Description

Hirose Electric Co Ltd's LX60-16S is a high-quality connector that is suitable for a wide range of applications.

  • Connector Series: LX
  • Part Type: 16 position receptacle connector
  • Mounting Type: Surface Mount, Right Angle
  • Feature: Gold
  • Supply and Demand: Balanced
  • Packaging: Reel - TR
  • Quantity: 2000
  • Operating Temperature: -40°C to 70°C
  • Production Lead Time: 25 weeks
  • Category: Connectors
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Cross-References: *LX60-16S, H11403CT, 245-0001-0-00, H11403TR, LX6016S, and H11403DKR
