MS-156C3(20) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

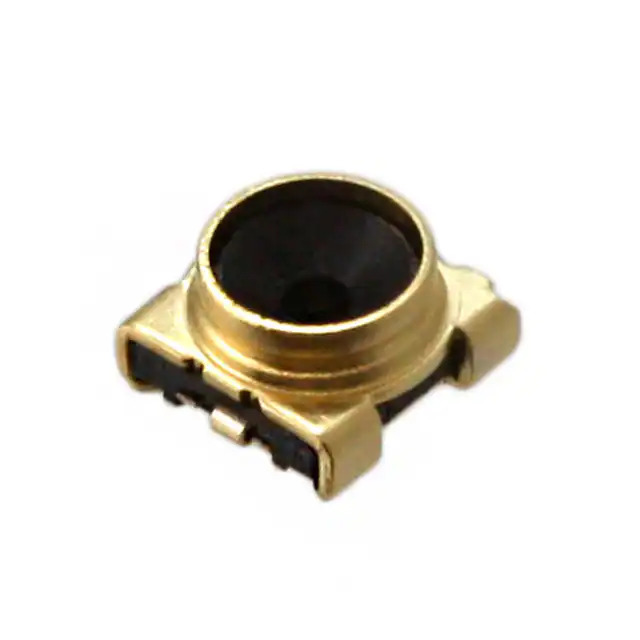

MS-156C3(20)

Part No MS-156C3(20)
Manufacturer Hirose Electric Co Ltd
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN COAX SWITCH RCPT STR 50OHM / Coaxial Switch - 4mm Plug Dia Connector Receptacle, Female Socket 50Ohm Surface Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Hirose Electric Co Ltd
Series MS-156C
Package Tape & Reel
Product Status Active
Connector Style Coaxial Switch - 4mm Plug Dia
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Mounting Feature -
Cable Group -
Fastening Type Snap-On
Frequency - Max 11 GHz
Number of Ports 1
Features Internal Switch
Housing Color Gold
Ingress Protection -
Center Contact Material Copper Alloy
Includes -
Body Material Phosphor Bronze
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polyamide (PA), Nylon 6T
Temperature Range - Operating -40°C ~ 85°C
Mating Cycles 100
Insertion Loss 0.4dB
Base Product Number MS-156C3
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 1365225-MS-156C3(20)
Ultra Librarian 3D Model Ultra Librarian MS-156C3(20) CAD Model

Description

The MS-156C3(20) is a coaxial connector assembly manufactured by Hirose Electric Co Ltd.

  • Mounting Type: Surface Mount
  • Fastening Type: Snap-On
  • Frequency Range: Up to 11 GHz
  • Impedance: 50Ohm
  • Contact Termination: Solder
  • Shield Termination: Solder
  • Internal Switch: Yes
  • Body Material: Phosphor Bronze
  • Body Finish: Gold
  • Center Contact Plating: Gold
  • Series: MS-156C
  • Packaging: Tape & Reel
  • Operating Temperature: -40°C to 85°C
