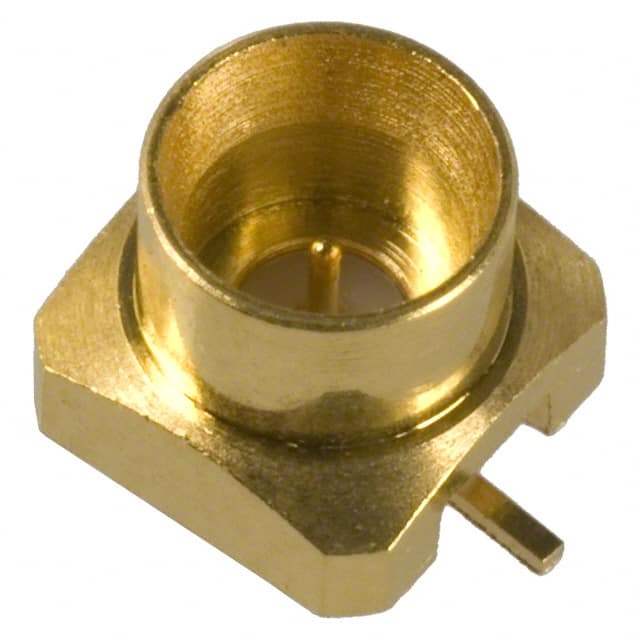

Same model may have multiple batches, images only for reference.

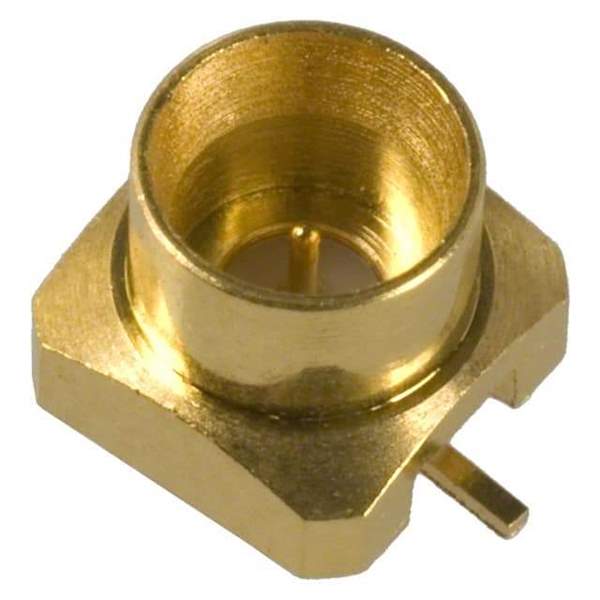

SMP-MSSB-PCS Real Image
Same model may have multiple batches, images only for reference.

SMP-MSSB-PCS

Part No SMP-MSSB-PCS
Manufacturer Amphenol-RF Division
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN SMP RCPT STR 50 OHM SMD / SMP Connector Receptacle, Male Pin 50Ohm Surface Mount Solder
Datasheet
SMP-MSSB-PCS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr Amphenol-RF Division
Package Bulk
Product Status Active
Connector Style SMP
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 18 GHz
Number of Ports 1
Features Smooth Bore
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number SMP-MSSB
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
California Prop 65 Warning Information
Win Source Part Number 934419-SMP-MSSB-PCS
Ultra Librarian 3D Model Ultra Librarian SMP-MSSB-PCS CAD Model

Description

The 934419-SMP-MSSB-PCS is an SMP Coaxial Connector Assembly designed for high-frequency applications.

  • Connector type: receptacle with a male pin
  • Fastening type: snap-on
  • Material: high-quality brass
  • Finish: gold finish
  • Center contact material: brass with a gold plating
  • Frequency range: up to 18 GHz
  • Impedance: 50Ohm
  • Temperature range: -65°C to 165°C
  • Compliance: REACH regulations and California Prop 65
