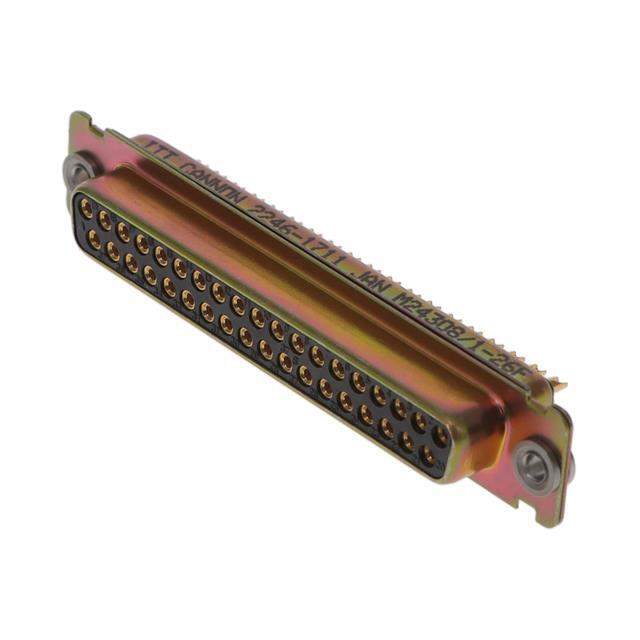

M24308/1-26F Real Image
Same model may have multiple batches, images only for reference.

M24308/1-26F

Part No M24308/1-26F
Manufacturer Cinch Connectivity Solutions
Catalog D - SUB, D - SHAPED connectors
Description CONN D-SUB RCPT 37POS PNL MNT
Datasheet
M24308/1-26F Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Cinch Connectivity Solutions
Series Military, MIL-C-24308, M24308
Packaging Bulk
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 37
Number of Rows 2
Shell Size, Connector Layout 4 (DC, C)
Contact Type Signal
Mounting Panel Mount
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Yellow Chromate Plated Cadmium
Contact Finish Gold
Contact Finish Thickness 50μin (1.27μm)
Operating Temperature Range -65°C ~ 125°C
Current Rating 5A
Color Green
Contact Form Machined
Housing Material Diallyl Phthalate (DAP), Glass Filled
Contact Material Phosphor Bronze
Win Source Part Number 766277-M24308/1-26F
Popularity Medium
Supply and Demand Status Limited
Family Name M24308
Introduction Date March 08, 2008
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian M24308/1-26F CAD Model

Description

This M24308/1-26F connector is a receptacle with female sockets.

  • Positions: 37
  • Contact Type: Signal
  • Housing Material: Diallyl Phthalate (DAP), Glass Filled
  • Mounting: Panel Mount
  • Shell Material: Steel, Yellow Chromate Plated Cadmium
  • Operating Temperature Range: -65°C to 125°C
  • Current Rating: 5A
  • Contact Finish: Gold (50μin (1.27μm))
  • Series: Military, MIL-C-24308, M24308
  • Package: Bulk
