10226-55G3PL 3M
Same model may have multiple batches, images only for reference.

10226-55G3PL

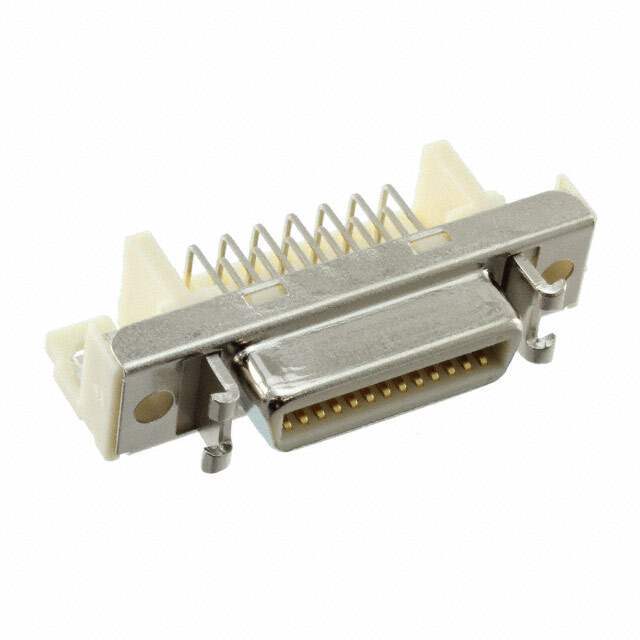

Part No 10226-55G3PL
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description CONN RCPT 26POS R/A SOLDER
Datasheet
10226-55G3PL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Bulk
Part Status Active
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Ultra Librarian 3D Model Ultra Librarian 10226-55G3PL CAD Model

Description

• Wiper-on-wiper contact for reliable repetitive plugging

• Surface mount compatible PCT insulator material

• Ground lock PCB retention

• Interface latch design for connection stability

• MDR digital LCD interface as a 20 or 26 contact connector

• Contacts: 14, 20, 26, 36, 40, 50 and 68
