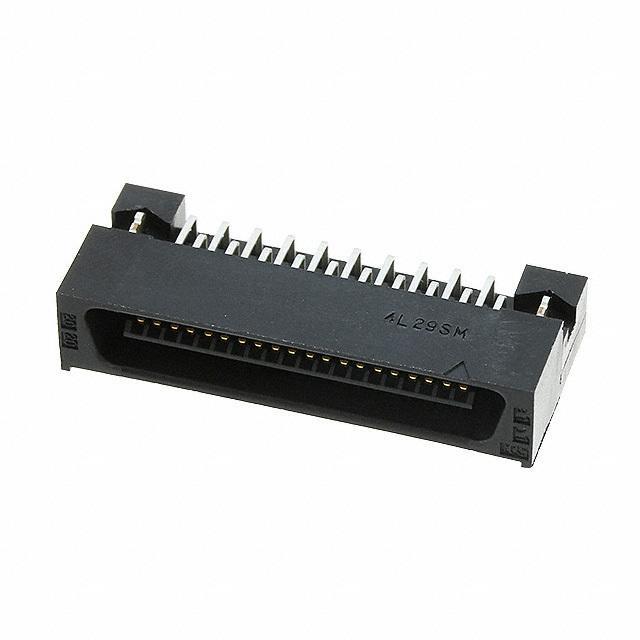

FX2-40P-1.27DSL(71) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FX2-40P-1.27DSL(71)

Part No FX2-40P-1.27DSL(71)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Description CONN BTB PLUG 40POS R/A SOLDER / 40 Position Plug Connector Board to Board Through Hole, Right Angle Solder
Datasheet
FX2-40P-1.27DSL(71) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr Hirose Electric Co Ltd
Series FX2
Package Tray
Product Status Active
Connector Style Center Strip Contacts
Connector Type Plug
Number of Positions 40
Number of Rows 2
Mounting Type Through Hole, Right Angle
Termination Solder
Type Board to Board
Features Board Lock
Contact Finish Gold
Base Product Number FX2
Standard Package 70 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 774837-FX2-40P-1.27DSL(71)
Ultra Librarian 3D Model Ultra Librarian FX2-40P-1.27DSL(71) CAD Model

Description

The 774837-FX2-40P-1.27DSL(71) is a board-to-board connector from Hirose Electric Co Ltd's FX2 series.

  • Positions: 40
  • Contact Style: Center Strip
  • Termination: Solder
  • Contact Finish: Gold
  • Mounting Type: Through Hole, Right Angle
  • Series: FX2
  • Board Lock: Yes
  • Package: Tray
  • Standard Package: 70 Pieces
  • ECCN: EAR99
  • REACH Regulations: Not Affected
  • MSL Level: 1 (Unlimited)
  • Active Product: Yes
