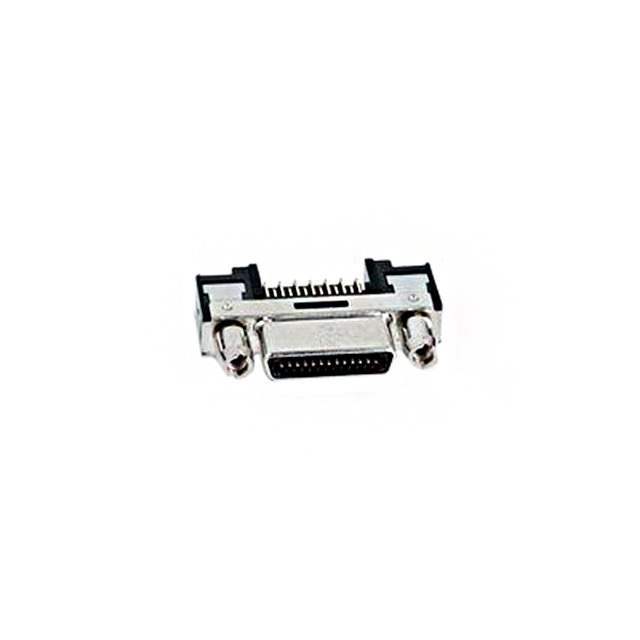

Part No 12226-5100-00FR
Manufacturer 3M
Catalog D - SUB, D - SHAPED connectors
Description 3M SHRUNK DELTA RIBBON (SDR) CON
Datasheet
12226-5100-00FR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310371-12226-5100-00FR
Manufacturer 3M
Category Connectors, Interconnects > D-Sub, D-Shaped Connectors > Centronics Connectors
Packaging Box
Part Status Active
Connector Type Receptacle
Number of Positions 26
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness Flash
Ultra Librarian 3D Model Ultra Librarian 12226-5100-00FR CAD Model

Description

26 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
