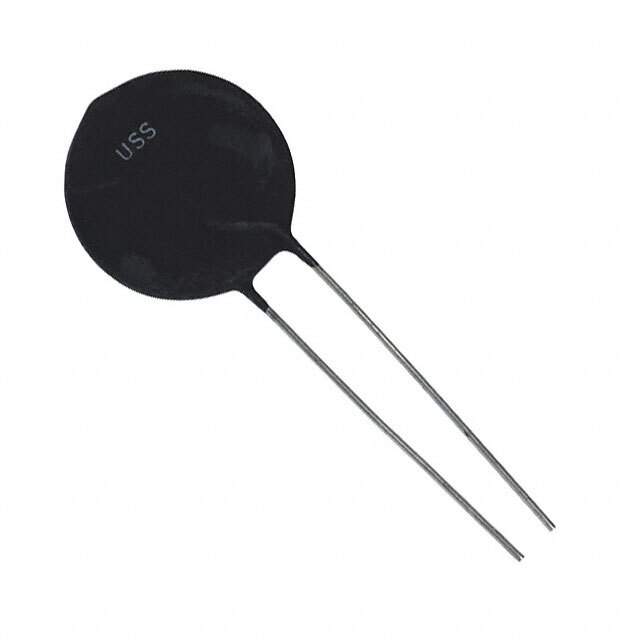

ST1R020B Real Image
Same model may have multiple batches, images only for reference.

ST1R020B

Part No ST1R020B
Manufacturer Littelfuse Inc.
Catalog Inrush Current Limiters (ICL)
Datasheet
ST1R020B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Inrush Current Limiters (ICL)
Mfr Littelfuse Inc.
Series ST
Package Bulk
R @ 25°C 1 Ohms
Tolerance ±15%
Current - Steady State Max 20 A
R @ Current 15 mOhms
Diameter 1.201" (30.50mm)
Lead Spacing 0.310" (7.87mm)
Other Names -1024-ST1R020B,615-1046,ST1R020BRA,1294-ST1R020B
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1301645-ST1R020B
Ultra Librarian 3D Model Ultra Librarian ST1R020B CAD Model

Description

The ST series inrush current limiter from Littelfuse Inc. is a reliable and efficient solution for circuit protection.

  • Current Steady State Max: 20A
  • Tolerance: ±15%
  • Lead Spacing: 0.310" (7.87mm)
  • Diameter: 1.201" (30.50mm)
  • Resistance @ 25°C: 1 ohm
  • R @ current: 15 mOhms
  • ECCN: EAR99 compliant
  • REACH: Unaffected by REACH regulations
  • Packaging: Bulk
  • Standard Package: 100 units
