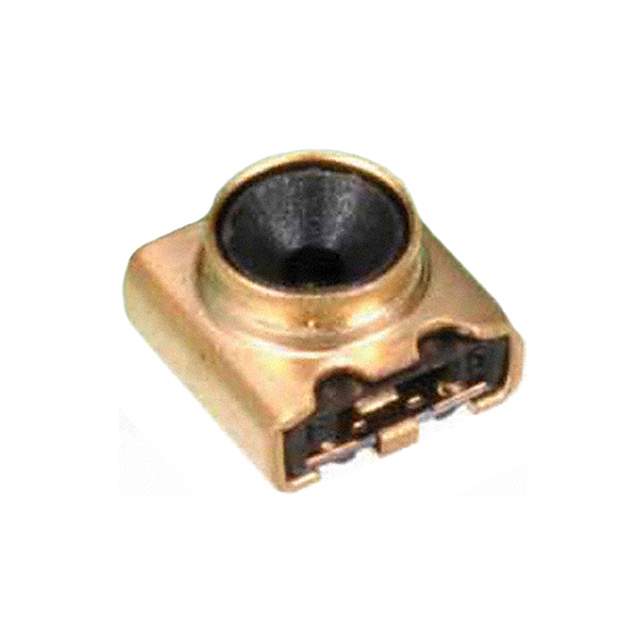

The Hirose Electric Co Ltd connector is a receptacle, female socket with a snap-on fastening type. It features an internal switch and has a coaxial switch - 4mm plug dia connector style. The connector has a mounting feature of SMD (SMT) and is made of phosphor bronze body material. The center contact material is made of beryllium copper and is plated with gold. The dielectric material used is polyamide (PA), nylon 6T. The connector has an impedance of 50 Ohm and an insertion loss of 0.15dB. It has a shield termination of solder and can withstand a temperature range of -40°C to 85°C. With a maximum input frequency of 6GHz, this connector has a medium popularity and a sufficient supply and demand status in the market.

• Connector Type: Receptacle, Female Socket
• Fastening Type: Snap-On
• Internal Switch: Yes
• Connector Style: Coaxial Switch - 4mm Plug Dia
• Mounting: SMD (SMT)
• Body Material: Phosphor Bronze
• Center Contact Material: Beryllium Copper
• Center Contact Plating: Gold
• Dielectric Material: Polyamide (PA), Nylon 6T
• Impedance: 50 Ohm
• Insertion Loss: 0.15dB
• Shield Termination: Solder
• Temperature Range: -40°C to 85°C
• Maximum Input Frequency: 6GHz
• Popularity: Medium
• Supply and Demand: Sufficient
