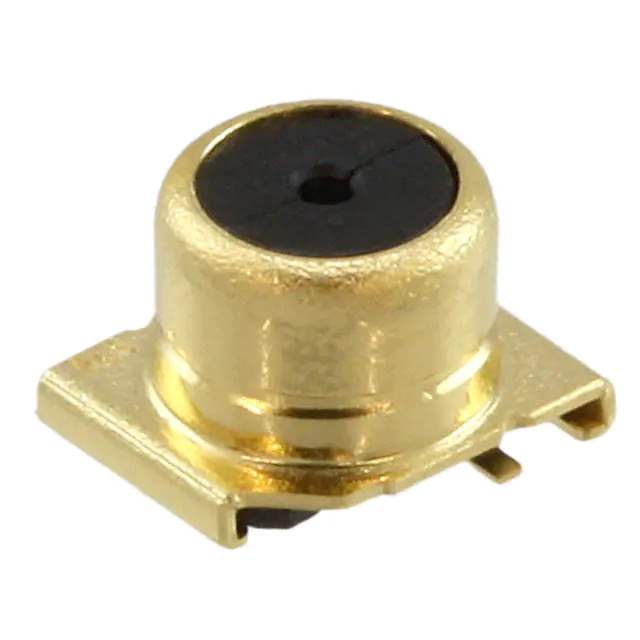

The MS-162 is a coaxial connector assembly with an internal switch. It is manufactured by Hirose Electric Co Ltd. The connector type is receptacle, female socket, and the fastening type is snap-on. The package is tape & reel format, and the contact termination is solder. The connector style is coaxial switch with a 4mm plug diameter. It has a maximum frequency of 10 GHz and a housing color of gold. The number of ports is 1, and the standard package is 3,000 pcs. The impedance is 50Ohm, and the body material is brass. The insertion loss is 0.7dB, and the shield termination is solder. The MS-162 has a mounting type of surface mount, and the temperature range for operating is -40°C to 85°C. It is an obsolete product.

• Type: Coaxial Connector Assembly with Internal Switch
• Manufacturer: Hirose Electric Co Ltd
• Connector Type: Receptacle, Female Socket
• Fastening Type: Snap-On
• Package: Tape & Reel
• Contact Termination: Solder
• Connector Style: Coaxial Switch with 4mm Plug Diameter
• Maximum Frequency: 10 GHz
• Housing Color: Gold
• Number of Ports: 1
• Standard Package: 3,000 pcs
• Impedance: 50Ohm
• Body Material: Brass
• Insertion Loss: 0.7dB
• Shield Termination: Solder
• Mounting Type: Surface Mount
• Temperature Range: -40°C to 85°C
• Status: Obsolete
