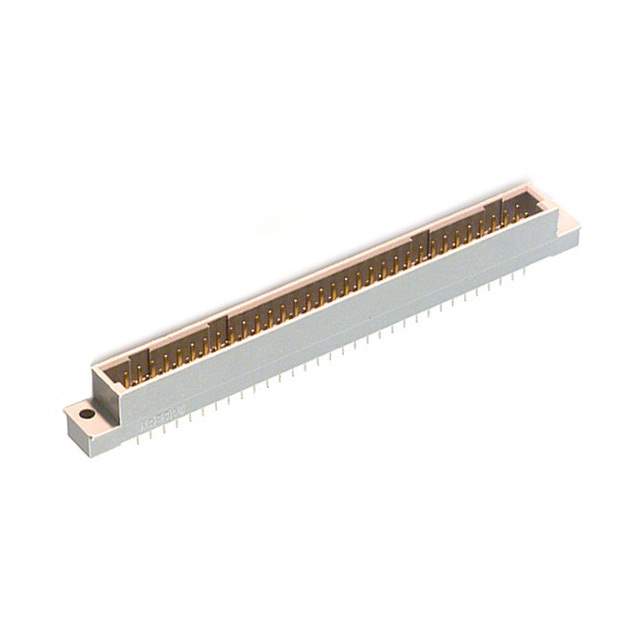

PCN10-64P-2.54DSA(72) Real Image
Same model may have multiple batches, images only for reference.

PCN10-64P-2.54DSA(72)

Part No PCN10-64P-2.54DSA(72)
Manufacturer Hirose Electric Co Ltd
Catalog Backplane Connectors
Datasheet
PCN10-64P-2.54DSA(72) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Hirose Electric Co Ltd
Series PCN10
Package Tray
Connector Type Header, Male Pins
Number of Positions 64
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Temperature Range - Operating -55°C ~ 85°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number PCN10
Other Names *PCN10-64P-2.54DSA(72),H11167,PCN1064P254DSA72,583-0009-3-72
Standard Package 15
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294293-PCN10-64P-2.54DSA(72)
Ultra Librarian 3D Model Ultra Librarian PCN10-64P-2.54DSA(72) CAD Model

Description

The Hirose Electric Co Ltd PCN10-64P-2.54DSA(72) is a header male pin connector that is designed for backplane applications.

  • Positions: 64
  • Pitch: 0.100 inches (2.54mm)
  • Loaded: All positions
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Tray
  • Standard Package: 15
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
