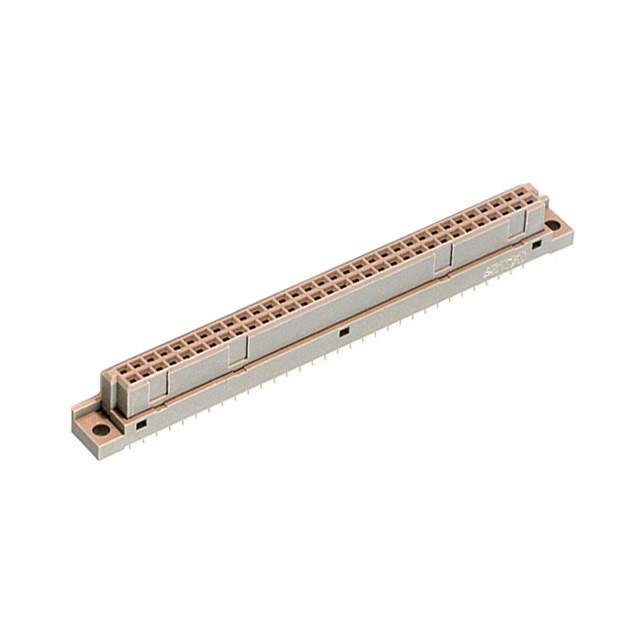

PCN10-64S-2.54DSA(72) Real Image
Same model may have multiple batches, images only for reference.

PCN10-64S-2.54DSA(72)

Part No PCN10-64S-2.54DSA(72)
Manufacturer Hirose Electric Co Ltd
Catalog Backplane Connectors
Description CONN DIN RCPT 64POS PCB GOLD / 64 Position Din Connector Receptacle, Female Sockets Gold Through Hole
Datasheet
PCN10-64S-2.54DSA(72) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - DIN 41612
Mfr Hirose Electric Co Ltd
Series PCN10
Package Tray
Connector Type Receptacle, Female Sockets
Number of Positions 64
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Style B
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Temperature Range - Operating -55°C ~ 85°C
Current Rating (Amps) 2A
Material Flammability Rating UL94 V-0
Material - Insulation Polybutylene Terephthalate (PBT)
Base Product Number PCN10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H124233,*PCN10-64S-2.54DSA(72),PCN10-64S-2.54DSA(72)-ND,-PCN10-64S-2.54DSA(72),583-0021-9-72,*PCN10-64S-2.54DSA(72)-ND
Standard Package 30
Win Source Part Number 1231207-PCN10-64S-2.54DSA(72)
Ultra Librarian 3D Model Ultra Librarian PCN10-64S-2.54DSA(72) CAD Model

Description

The Hirose Electric Co Ltd PCN10-64S-2.54DSA(72) is a connector that belongs to the backplane connectors - DIN 41612 category and has a popularity of 60 percent.

  • Style: B
  • Connector Type: Female Socket Receptacle
  • Number of Positions Loaded: 64 (All Rows)
  • Pitch: 0.100" (2.54mm)
  • Mounting Type: Through-Hole
  • Termination: Solder
  • Contact Finish: Gold
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Package: Tray
  • Standard Package: 30
  • Operating Temperature Range: -55°C to 85°C
