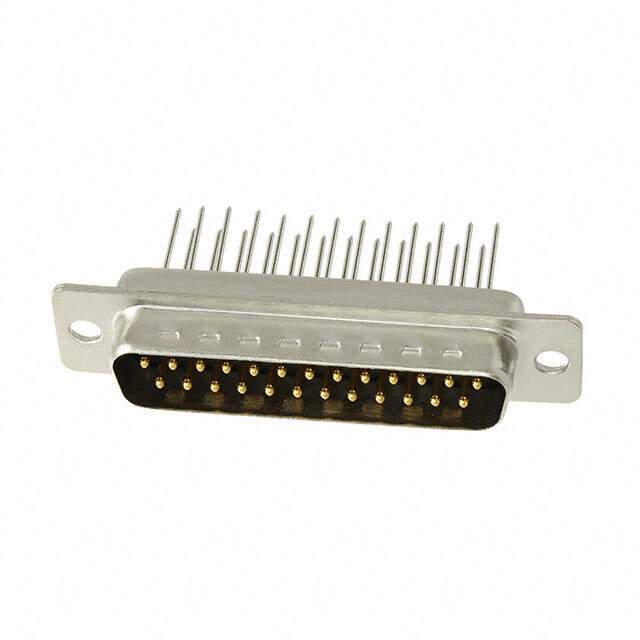

SDBG-25PF(55) Real Image
Same model may have multiple batches, images only for reference.

SDBG-25PF(55)

Part No SDBG-25PF(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Grounding Indents
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDBG
Other Names *SDBG-25PF(55),211-0690-0-55,*SDBG-25PF(55),-SDBG-25PF(55),H122919
Standard Package 80
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294122-SDBG-25PF(55)
Ultra Librarian 3D Model Ultra Librarian SDBG-25PF(55) CAD Model

Description

This product is a D-Sub Connector with a 25 position male plug with grounding indents.

  • Positions: 25
  • Connector Type: Male plug with grounding indents
  • Color: Black
  • Contact Type: Signal
  • Rows: Two
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Package: Tray
  • Connector Style: D-Sub
  • Voltage Rating: 350V
  • Material Flammability Rating: UL94 V-0
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • Manufacturer: Hirose Electric Co Ltd
  • Base Product Number: SDBG
