Same model may have multiple batches, images only for reference.

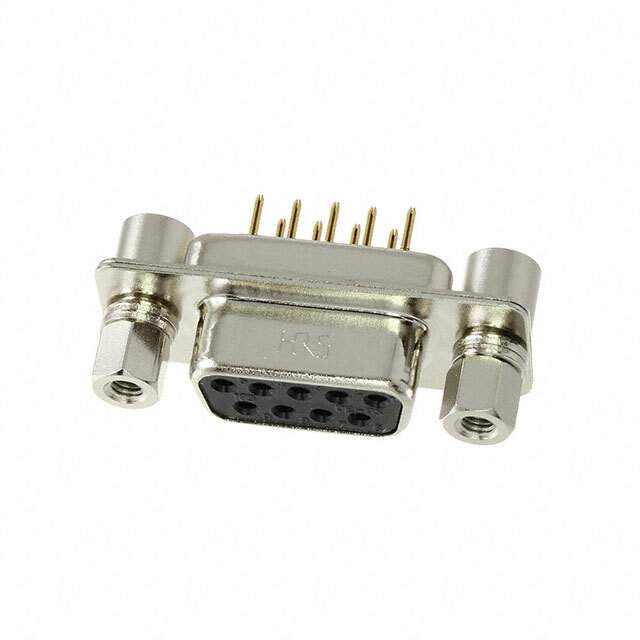

SDEB-9S-SL-LNK(55) Real Image
Same model may have multiple batches, images only for reference.

SDEB-9S-SL-LNK(55)

Part No SDEB-9S-SL-LNK(55)
Manufacturer Hirose Electric Co Ltd
Catalog D - SUB, D - SHAPED connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Hirose Electric Co Ltd
Series SD
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (M2.6)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 350V
Color Black
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Phosphor Bronze
Base Product Number SDEB
Other Names 211-0978-9-55,-SDEB-9S-SL-LNK(55),*SDEB-9S-SL-LNK(55),*SDEB-9S-SL-LNK(55),H122930
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294112-SDEB-9S-SL-LNK(55)
Ultra Librarian 3D Model Ultra Librarian SDEB-9S-SL-LNK(55) CAD Model

Description

The SD series D-Sub connector from Hirose Electric Co Ltd is a 9-position receptacle with female sockets.

  • Series: SD
  • Positions: 9
  • Type: Receptacle with Female Sockets
  • Shell Material: Steel
  • Shell Plating: Nickel
  • Dielectric Material: Polybutylene Terephthalate (PBT)
  • Mounting: Panel Mount, Through-Hole
  • Voltage Rating: 350V
  • Current Rating: 3A
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Flange Feature: Mating Side, Female Screwlock (M2.6)
  • Material Flammability: UL94 V-0
  • ECCN: EAR99
  • Package: Trays of 50
  • Backset Spacing: Unspecified
  • Temperature Range - Operating: Unspecified
