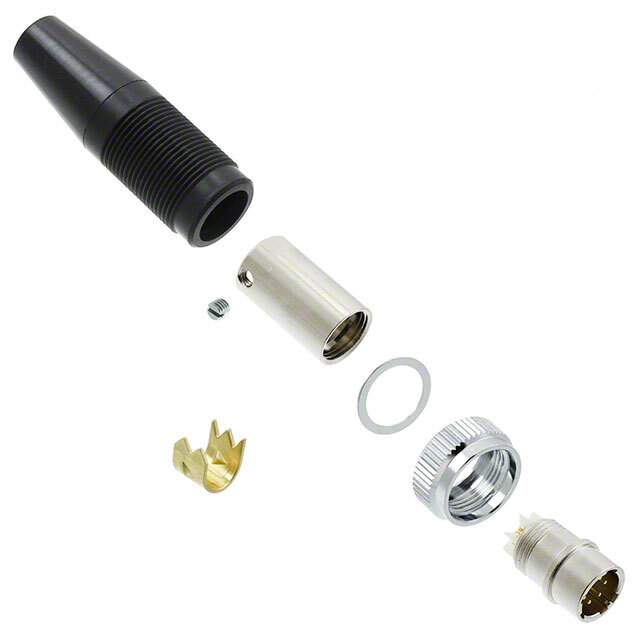

SR30-10PM-6P(71) Real Image
Same model may have multiple batches, images only for reference.

SR30-10PM-6P(71)

Part No SR30-10PM-6P(71)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Datasheet
SR30-10PM-6P(71) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR30
Package Bulk
Product Status Obsolete
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert 10
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Features Backshell, Clamp, Coupling Nut, Strain Relief
Shielding Unshielded
Current Rating (Amps) 1A
Voltage Rating 100VAC, 140VDC
Backshell Material, Plating Brass, Nickel
Contact Material Brass
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyacetal
Applications Radio
Other Names 103-0288-8-71
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294202-SR30-10PM-6P(71)
Ultra Librarian 3D Model Ultra Librarian SR30-10PM-6P(71) CAD Model

Description

The SR30-10PM-6P(71) is a circular connector from the Hirose Electric Co Ltd.

  • Connector Type: Plug Male Pin
  • Termination: Solder Cup
  • Fastening Type: Threaded
  • Voltage Rating: 100VAC and 140VDC
  • Suitable for: Radio Applications
  • Features: Backshell, Clamp, Coupling Nut, and Strain Relief
  • Insert Material: Polyacetal
  • Shell Material: Zinc Alloy
  • Mating Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin
