Same model may have multiple batches, images only for reference.

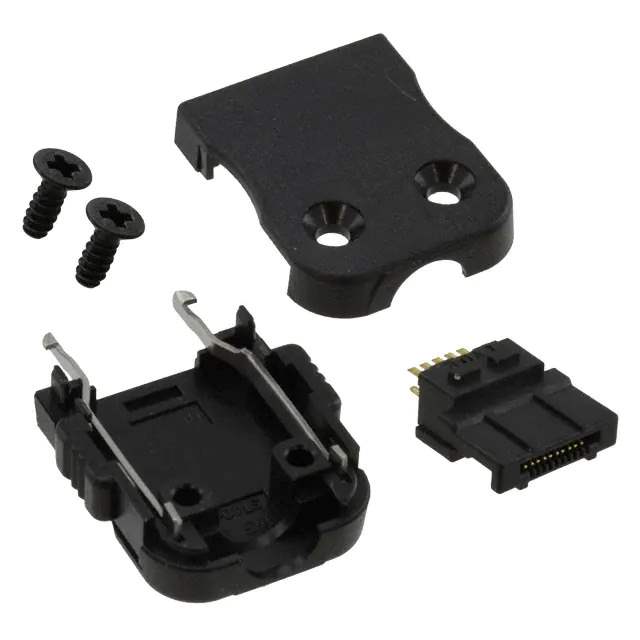

ST40-10S-CV(80) Real Image
Same model may have multiple batches, images only for reference.

ST40-10S-CV(80)

Part No ST40-10S-CV(80)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN PLUG 10POS SOLDER 28-30AWG
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series ST
Package Tray
Product Status Obsolete
Connector Type Plug
Contact Type Male Pin
Number of Positions 10
Pitch 0.020" (0.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination Solder
Wire Type Discrete
Wire Gauge 28-30 AWG
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Color Black
Standard Package 100 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 935185-ST40-10S-CV(80)
Ultra Librarian 3D Model Ultra Librarian ST40-10S-CV(80) CAD Model

Description

The ST40-10S-CV(80) is a rectangular connector designed for free hanging and panel mount applications. It is part of the ST series and features 10 positions with a pitch of 0.020" (0.50mm).

  • Series: ST
  • Positions: 10
  • Pitch: 0.020" (0.50mm)
  • Color: Black
  • Contact Gender: Male Pin
  • Wire Gauge: 28-30 AWG
  • Contact Finish: Gold (8.00µin / 0.203µm)
  • Mounting Method: Free Hanging (In-Line)
  • Termination: Solder
  • ECCN: EAR99
  • HTSUS: 8536.69.8000
