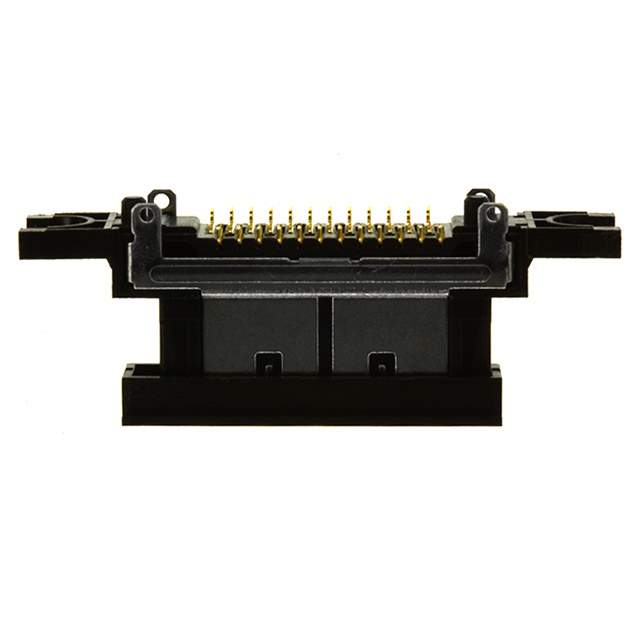

ST80X-24S(30)

Part No ST80X-24S(30)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
ST80X-24S(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series ST
Package Tape & Reel (TR)
Connector Type Plug, Cradle
Contact Type Non-Gendered
Pitch - Mating 0.039" (1.00mm)
Number of Positions 24
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Mounting SMD (SMT)
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.378" (9.60mm)
Contact Finish - Mating Gold
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon
Features Board Guide, Mounting Flange, Shielded
Temperature Range - Operating -30°C ~ 80°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 0.5A
Voltage Rating 100V
Base Product Number ST80X
Other Names 241-0037-2-30
Standard Package 400
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293310-ST80X-24S(30)
Ultra Librarian 3D Model Ultra Librarian ST80X-24S(30) CAD Model

Description

The ST80X-24S(30) is a male pin header connector manufactured by Hirose Electric Co Ltd.

  • Manufacturer: Hirose Electric Co Ltd.
  • Series: ST
  • Positions: 24
  • Features: Board guide, mounting flange, and is shielded
  • Connector Type: Plug and cradle
  • Contact Type: Non-gendered
  • Positions Loaded: All
  • Rows: 1
  • Termination: Solder
  • Fastening Type: Latch holder
  • Package: Tape and reel
  • Contact Material: Copper alloy
  • Voltage Rating: 100V
  • Insulation Material: Polyamide (PA), nylon
  • Pitch-Mating: 0.039 inches (1.00mm)
  • Contact Finish-Mating: Gold
  • Contact Length-Post: Not specified
  • Overall Contact Length: Not specified
  • Insulation Height: 0.378 inches (9.60mm)
  • Operating Temperature Range: -30°C to 80°C
