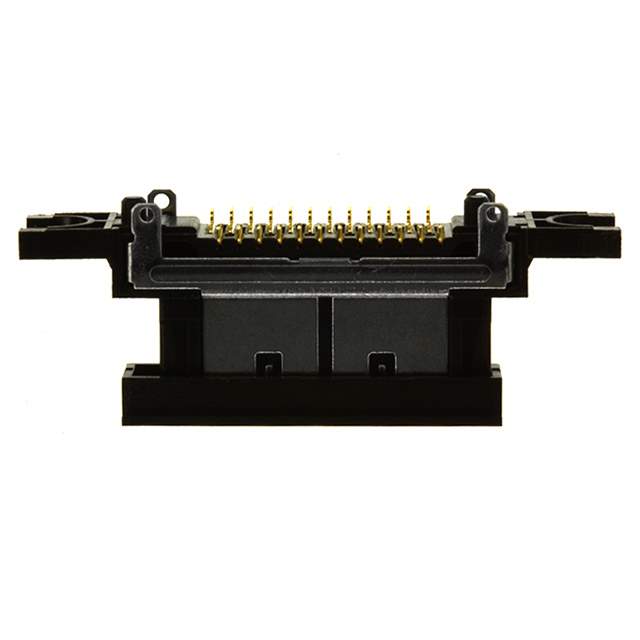

ST80X-24S(50)

Name: ST80X-24S(50)
Brand: Hirose Electric Co Ltd
SKU: 1293312
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ST80X-24S(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	ST
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Plug, Cradle
Contact Type	Non-Gendered
Pitch - Mating	0.039" (1.00mm)
Number of Positions	24
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Latch Holder
Insulation Height	0.378" (9.60mm)
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Material	Copper Alloy
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Mounting Flange, Shielded
Temperature Range - Operating	-30°C ~ 80°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	0.5A
Voltage Rating	100V
Other Names	H10356DKR,*ST80X-24S(50),H10356CT,ST80X24S50,H10356TR
Standard Package	400
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293312-ST80X-24S(50)
Ultra Librarian 3D Model	Ultra Librarian ST80X-24S(50) CAD Model

Alternative Products

Description

The ST80X-24S(50) is a male pin header connector designed for use in electronic equipment.

Series: ST
Positions: 24
Shielded: Yes
Voltage Rating: 100V
Contact Material: Copper alloy
Connector Type: Plug or Cradle
Termination: Solder
Fastening Type: Latch holder
Mounting: Surface Mount Technology (SMT)
Packaging: Tape and Reel
Pitch: 0.039 inches (1.00mm)
Contact Finish: Gold
Operating Temperature Range: -30°C to 80°C
Manufacturer: Hirose Electric Co Ltd.
