Same model may have multiple batches, images only for reference.

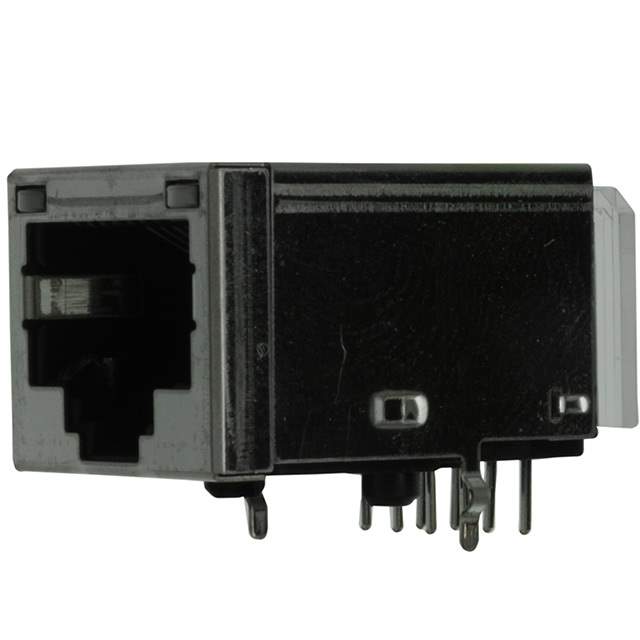

TM11RD-5TANA-A-88-LP Real Image
Same model may have multiple batches, images only for reference.

TM11RD-5TANA-A-88-LP

Part No TM11RD-5TANA-A-88-LP
Manufacturer Hirose Electric Co Ltd
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-T PCB / 1 Port RJ45Through Hole 10/100 Base-T
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Hirose Electric Co Ltd
Series TM11R
Package Tray
Product Status Obsolete
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-T
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.536" (13.61mm)
Number of Cores per Jack 5
Shielding Shielded
Features Board Guide, Board Lock, Light Pipe
Tab Direction Down
Contact Material Copper Alloy
Contact Finish Gold
Temperature Range - Operating -25°C ~ 80°C
Contact Finish Thickness 50.0µin (1.27µm)
Shield Material Copper Alloy
Housing Material Polybutylene Terephthalate (PBT)
Standard Package 90
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349236-TM11RD-5TANA-A-88-LP
Ultra Librarian 3D Model Ultra Librarian TM11RD-5TANA-A-88-LP CAD Model

Description

The TM11RD-5TANA-A-88-LP is an RJ45 modular connector jack with magnetics from Hirose Electric Co Ltd.

  • Orientation: 90° Angle (Right)
  • Shielded: Yes
  • Number of Ports: Single
  • Application: 10/100 Base-T
  • Number of Cores Per Jack: 5
  • Termination: Solder
  • Packaging: Tray
  • Quantity per Tray: 90
  • RoHS Compliant: Yes
  • Operating Temperature: -25°C to 80°C
