Same model may have multiple batches, images only for reference.

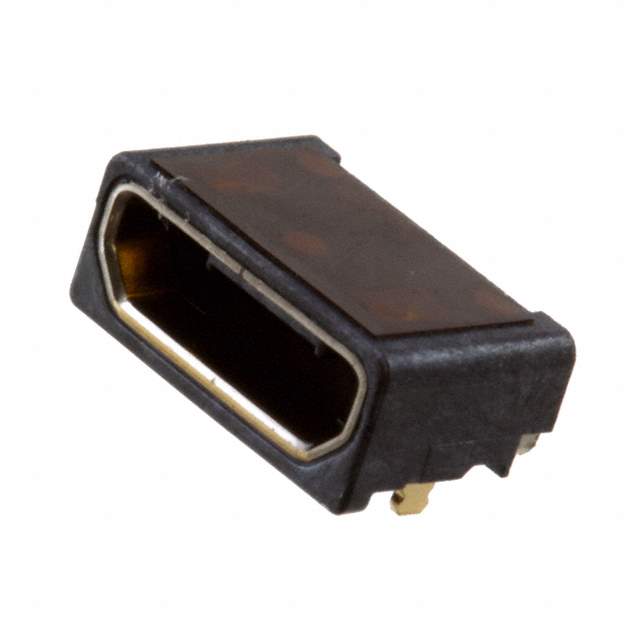

ZX62WD1-B-5PC Real Image
Same model may have multiple batches, images only for reference.

ZX62WD1-B-5PC

Part No ZX62WD1-B-5PC
Manufacturer Hirose Electric Co Ltd
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A
Datasheet
ZX62WD1-B-5PC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 25 Weeks
Features USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series ZX62W
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name ZX62
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number H12193DKR, Q8958847, H12193TR, H12193CT, ZX62WD1B5PC, ZX62WD1-B-5PC-NDL, 242-0121-3-00, Q7212715
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 904370-ZX62WD1-B-5PC
Ultra Librarian 3D Model Ultra Librarian ZX62WD1-B-5PC CAD Model

Description

The Hirose Electric Co Ltd ZX62WD1-B-5PC is a USB micro B USB 2.0 receptacle connector designed for surface mount applications.

  • Type: USB micro B USB 2.0 Receptacle Connector
  • Mounting: Surface Mount, Right Angle
  • Operating Temperature: -30°C to 85°C
  • Application: Connectors
  • Package: Reel of 3,000 units
  • ECCN: EAR99
  • Estimated Production Lead Time: 25 weeks
  • HTSUS: 8536.69.4040
