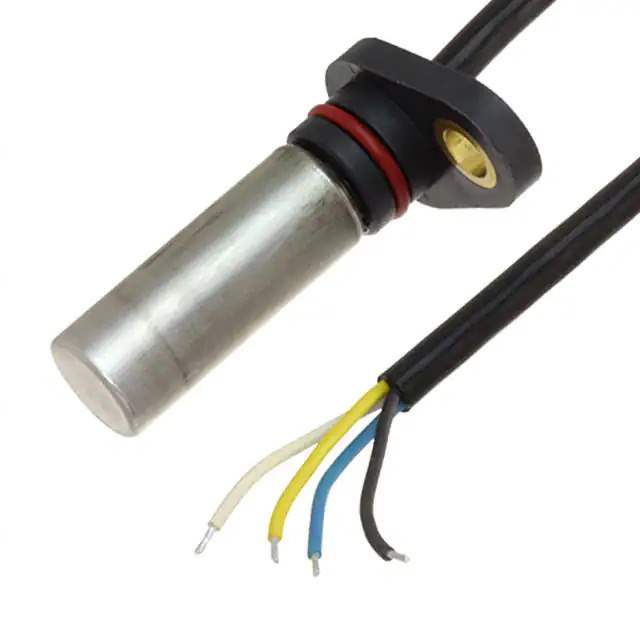

SNDH-T4L-G01 Real Image
Same model may have multiple batches, images only for reference.

SNDH-T4L-G01

Part No SNDH-T4L-G01
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL OPEN COLLECTOR CONN
Datasheet
SNDH-T4L-G01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell
Series SNDH-T
Package Bulk
Product Status Active
Type Hall Effect Switch
Output Type Open Collector
Actuator Material Magnet
Termination Style Connector
Frequency 15 kHz
Voltage - Supply 4.5V ~ 18V
Temperature Range - Operating -40°C ~ 150°C (TA)
Package / Case Cylinder with Mounting Flange
Base Product Number SNDH-T4
Standard Package 1 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 896852-SNDH-T4L-G01
Ultra Librarian 3D Model Ultra Librarian SNDH-T4L-G01 CAD Model

Description

The Honeywell 896852-SNDH-T4L-G01 is an active magnetic sensor designed for industrial applications.

  • Category: Sensors, Transducers - Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
  • Series: SNDH-T series
  • Sensor Type: Hall Effect switch
  • Termination Style: Connector
  • Package: Bulk
  • Standard Package: 1 piece
  • Frequency: 15 kHz
  • Output Type: Open collector
  • Voltage Supply: 4.5V to 18V
  • Temperature Range: -40°C to 150°C
  • Manufacturer: Honeywell
  • Status: In production
