Same model may have multiple batches, images only for reference.

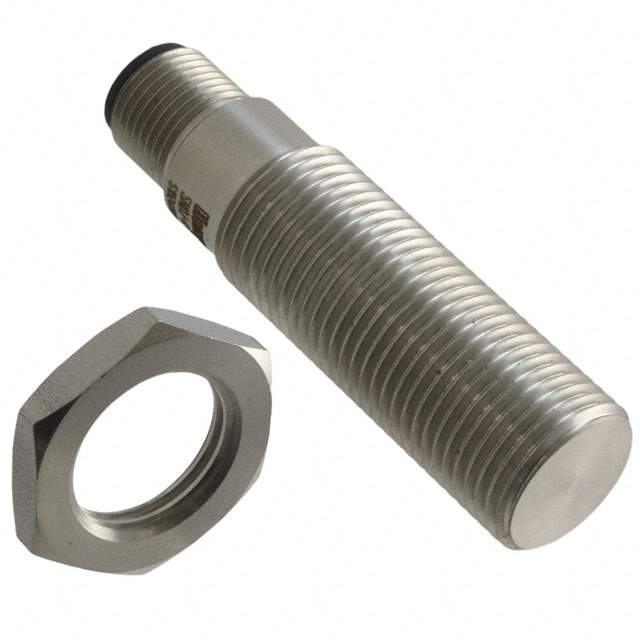

SNDJ-H3C-G02 Real Image
Same model may have multiple batches, images only for reference.

SNDJ-H3C-G02

Part No SNDJ-H3C-G02
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL DIGITAL CONNECTOR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNDJ
Product Status Obsolete
Type Hall Effect Sensor
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Connector
Frequency 15 kHz
Voltage - Supply 8V ~ 25V
Temperature Range - Operating -20°C ~ 100°C (TA)
Package / Case Barrel, Stainless Steel
Other Names SNDJH3CG02,480-2812
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
Win Source Part Number 1235369-SNDJ-H3C-G02
Ultra Librarian 3D Model Ultra Librarian SNDJ-H3C-G02 CAD Model

Description

The Honeywell SNDJ Hall Effect Sensor is a magnetic sensor designed for industrial use.

  • Actuator Material: Ferrous metals and gear tooth
  • Frequency: 15 kHz
  • Output Type: Digital
  • Voltage Supply: 8V ~ 25V
  • Temperature Range: -20°C ~ 100°C
  • Material: Stainless steel
  • Voltage Rating: 465VAC and 655VDC
  • REACH Regulations: Unaffected
