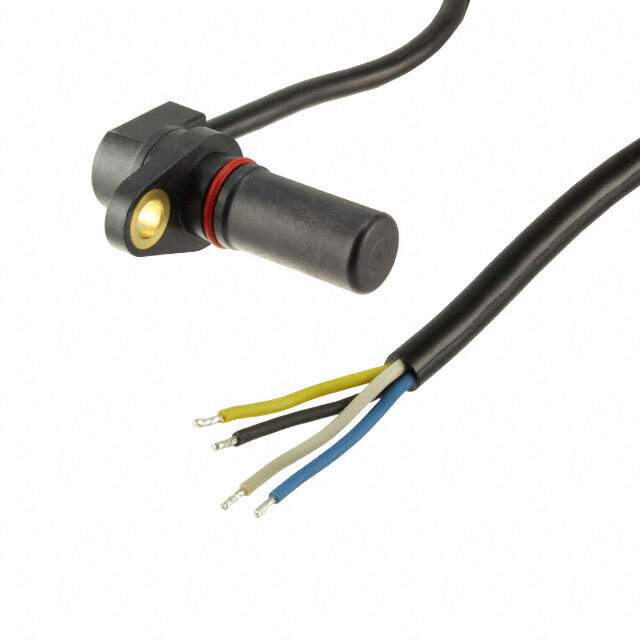

SNG-QPLA-000 Real Image
Same model may have multiple batches, images only for reference.

SNG-QPLA-000

Part No SNG-QPLA-000
Manufacturer Honeywell
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL DIGITAL CABLE LEADS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Honeywell Sensing and Productivity Solutions
Series SNG-Q
Type Hall Effect Sensor
Output Type Digital
Actuator Material Ferrous Metals, Gear Tooth
Termination Style Cable Leads
Frequency 20 kHz
Voltage - Supply 4.5V ~ 26V
Temperature Range - Operating -40°C ~ 150°C (TA)
Package / Case Module
Base Product Number SNG-QPLA
Other Names 480-6270
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
Win Source Part Number 1235366-SNG-QPLA-000
Ultra Librarian 3D Model Ultra Librarian SNG-QPLA-000 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SNG-QPLA-000 is a hall-effect sensor that is commonly used in industrial applications.

  • Frequency: 20kHz
  • Output Type: Digital
  • Termination Style: Cable leads
  • Actuator Material: Ferrous metals and gear tooth
  • Voltage Supply Range: 4.5V to 26V
  • Operating Temperature: -40°C to 150°C
