Same model may have multiple batches, images only for reference.

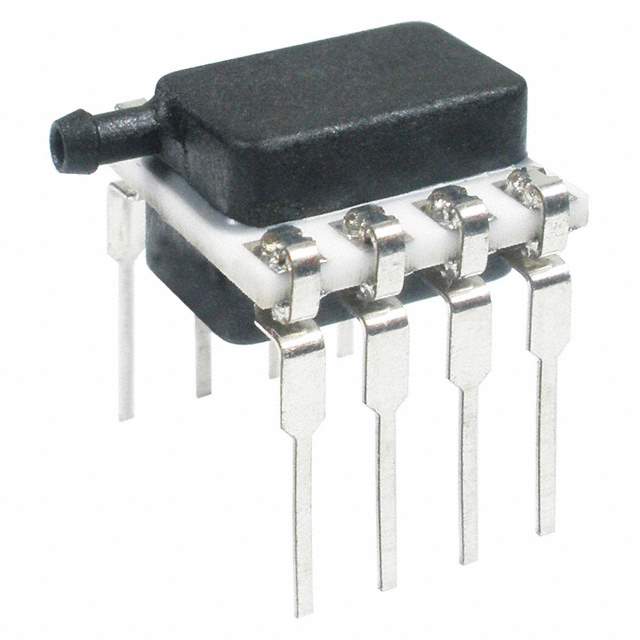

SSCDRNN015PDAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCDRNN015PDAA5

Part No SSCDRNN015PDAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI DIFF 5V DIP / Pressure Sensor ±15PSI (±103.42kPa) Differential Male - 0.08" (1.93mm) Tube 0.5 V ~ 4.5 V 8-DIP (0.524", 13.30mm), Side Port
Datasheet
SSCDRNN015PDAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±15PSI (±103.42kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.08" (1.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure ±60PSI (±413.69kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-DIP (0.524", 13.30mm), Side Port
Supplier Device Package 8-DIP
Base Product Number SSCDRNN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234597-SSCDRNN015PDAA5
Ultra Librarian 3D Model Ultra Librarian SSCDRNN015PDAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions pressure sensor is a TruStability® SSC series sensor that is ideal for use in various applications.

  • Features: Amplified Output and Temperature Compensated
  • Win Source Part Number: 1234597-SSCDRNN015PDAA5
  • Package/Case: 8-DIP (0.524", 13.30mm), side port
