Same model may have multiple batches, images only for reference.

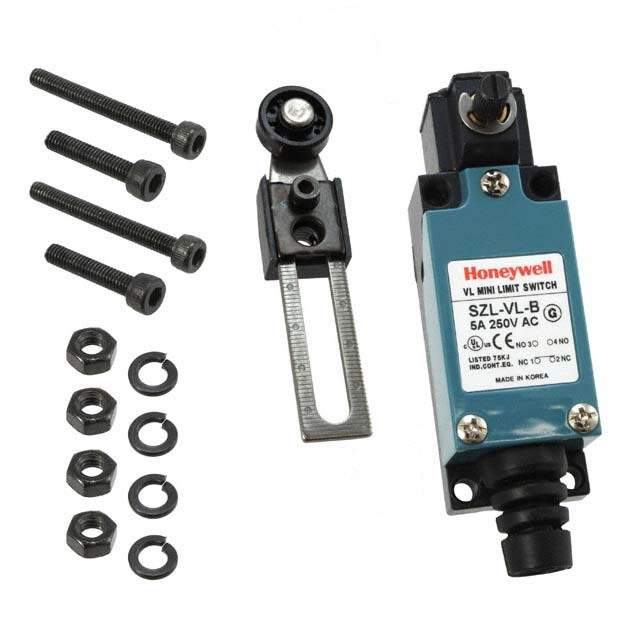

SZL-VL-B Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-B

Part No SZL-VL-B
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 250V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL
Package Bulk
Product Status Obsolete
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 5A (AC), 400mA (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Actuator Type Side Rotary, Adjustable Roller
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP64 - Dust Tight, Water Resistant
Operating Force 342 ~ 800gf
Release Force 21 ~ 50gf
Pretravel 20°
Differential Travel 10°
Overtravel 75°
Temperature Range - Operating -20°C ~ 60°C
Mechanical Life 10,000,000 Cycles
Other Names Q5371054,480-3704,SZLVLB,SZL-VL-B
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233649-SZL-VL-B
Ultra Librarian 3D Model Ultra Librarian SZL-VL-B CAD Model

Description

This Honeywell Sensing and Productivity Solutions limit switch has a SPDT (DB/DM) circuit and an on-mom switch function.

  • Circuit: SPDT (DB/DM)
  • Switch Function: on-mom
  • Actuator Type: Side rotary, adjustable roller
  • Ingress Protection: IP64, making it dust tight and water resistant
  • Voltage Rating for AC: 250 V
  • Voltage Rating for DC: 125 V
  • Current Rating: 5A (AC) and 400mA (DC)
  • Standard Package: 1 switch
  • Operating Force: 342 ~ 800gf
  • Release Force: 21 ~ 50gf
  • Pretravel: 20°
  • Differential Travel: 10°
  • Overtravel: 75°
  • Temperature Range for Operating: -20 to 60 °C
  • ECCN: EAR99
  • HTSUS: 8536.50.9055
