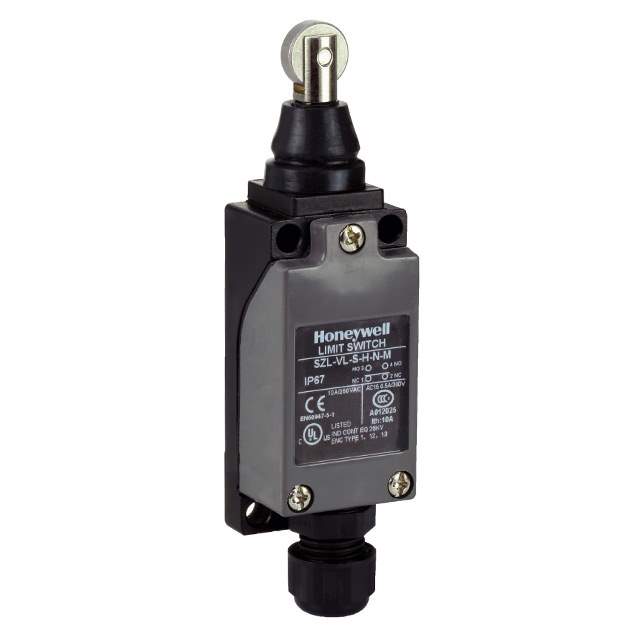

SZL-VL-S-H-N-M Real Image
Same model may have multiple batches, images only for reference.

SZL-VL-S-H-N-M

Part No SZL-VL-S-H-N-M
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 500MA 380V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-VL-S-H-N-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-VL-S
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 500mA (AC), 50mA (DC)
Voltage Rating - AC 380 V
Voltage Rating - DC 220 V
Actuator Type Roller Plunger
Mounting Type Chassis Mount
Termination Style Cable Gland
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 918gf
Pretravel 0.080" (2.0mm)
Differential Travel 0.060" (1.5mm)
Overtravel 0.138" (3.5mm)
Temperature Range - Operating -20°C ~ 70°C
Electrical Life 500,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-VL
Other Names 480-7076
Standard Package 10
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233646-SZL-VL-S-H-N-M
Ultra Librarian 3D Model Ultra Librarian SZL-VL-S-H-N-M CAD Model

Description

The Honeywell Sensing and Productivity Solutions SZL-VL-S series limit switch with a Win Source part number of 1233646-SZL-VL-S-H-N-M is a SPDT (DB/DM) circuit with a current rating of 500mA (AC) and 50mA (DC).

  • Win Source Part Number: 1233646-SZL-VL-S-H-N-M
  • Circuit: SPDT (DB/DM)
  • Current Rating: 500mA (AC) and 50mA (DC)
  • Ingress Protection: IP67, making it dust tight and waterproof
  • Voltage Rating: 380V (AC) and 220V (DC)
  • Package: Bulk
  • Standard Package: 10
  • Actuator Type: Roller plunger
  • Operating Force: 918gf
  • Mechanical Life: 10,000,000 cycles
  • Electrical Life: 500,000 cycles
  • HTSUS: 8536.50.7000
  • Other Name: 480-7076
